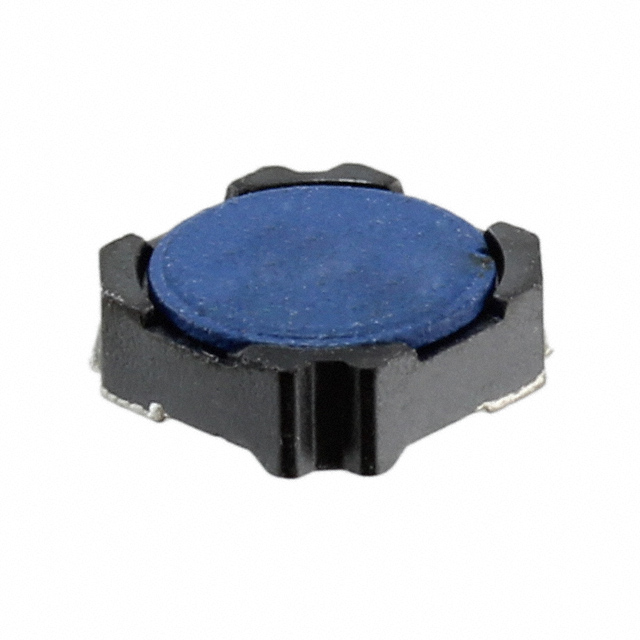

CDR6D23MNNP-101NC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Published :

2006

Terminal Shape :

WRAPAROUND

RoHS Status :

ROHS3 Compliant

Material - Core :

Ferrite

Inductor Application :

POWER INDUCTOR

Current - Saturation :

550mA

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

SMD/SMT

Height :

2.5mm

Number of Functions :

1

DC Resistance (DCR) :

903.8mOhm Max

Mount :

Surface Mount

Max DC Current :

410mA

Packing Method :

TR

Operating Temperature :

-40°C~105°C

Current Rating :

410mA

Depth :

6.8mm

Case/Size Code :

2626

Height Seated (Max) :

0.098 2.50mm

Tolerance :

±25%

Shielding :

yes

Factory Lead Time :

12 Weeks

Test Frequency :

100kHz

ECCN Code :

EAR99

Inductor Type :

GENERAL PURPOSE INDUCTOR

Pbfree Code :

yes

Terminal Placement :

DUAL ENDED

Inductance :

100μH

Number of Terminations :

2

HTS Code :

8504.50.80.00

Packaging :

Tape and Reel (TR)

Series :

CDR6D23MN

Size / Dimension :

0.256Lx0.256W 6.50mmx6.50mm

Radiation Hardening :

No

Shape/Size Description :

RECTANGULAR PACKAGE

Package / Case :

Nonstandard
