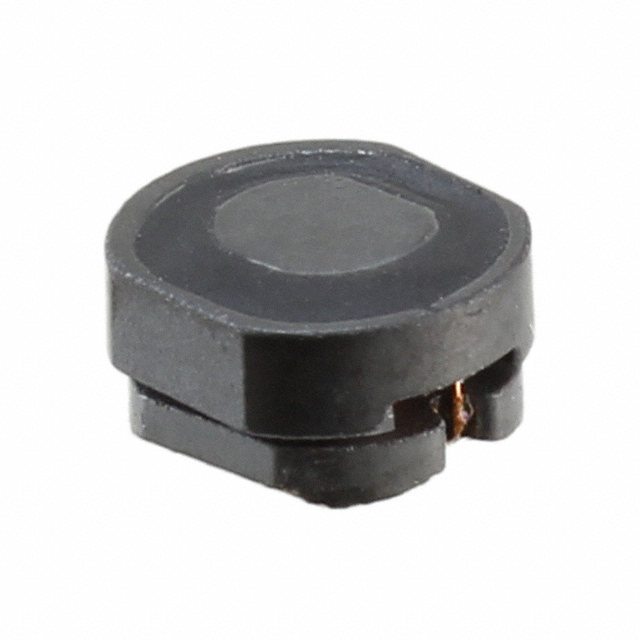

CDR63NP-220MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Height Seated (Max) :

0.138 3.50mm

Terminal Placement :

DUAL ENDED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inductor Application :

POWER INDUCTOR

DC Resistance (DCR) :

250mOhm Max

Height :

3.6mm

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Terminal Shape :

ONE SURFACE

Operating Temperature :

-25°C~85°C

Frequency - Self Resonant :

23.7MHz

Max DC Current :

620mA

Inductor Type :

GENERAL PURPOSE INDUCTOR

RoHS Status :

ROHS3 Compliant

Mount :

Surface Mount

Number of Terminations :

2

Pbfree Code :

yes

Published :

2010

Number of Functions :

1

Shape/Size Description :

RECTANGULAR PACKAGE

Case/Size Code :

2422

Depth :

5.9mm

Series :

CDR63

Mounting Type :

Surface Mount

Package / Case :

Nonstandard

Current Rating :

620mA

Tolerance :

±20%

Shielding :

yes

Inductance :

22μH

Size / Dimension :

0.244Lx0.220W 6.20mmx5.60mm

HTS Code :

8504.50.80.00

Radiation Hardening :

No

Test Frequency :

2.52MHz

Factory Lead Time :

15 Weeks
