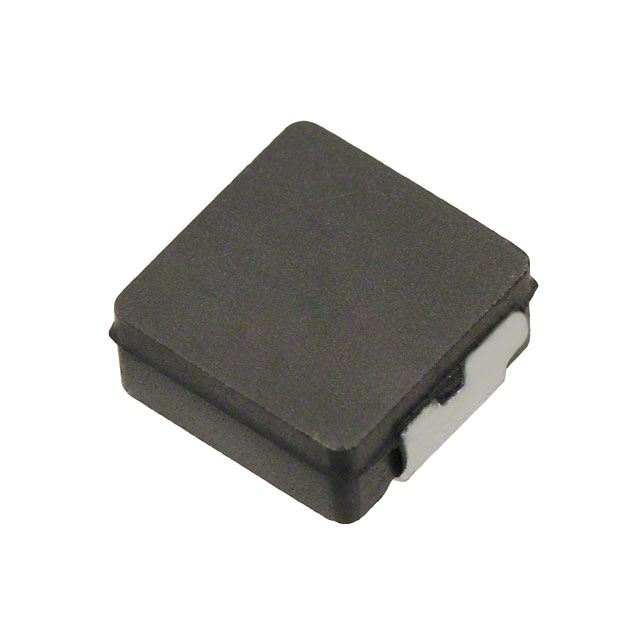

CDMC6D28NP-2R2MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Height :

6mm

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Military Standard :

Not

Height Seated (Max) :

0.118 3.00mm

DC Resistance (DCR) :

19.3mOhm Max

Max DC Current :

7.6A

HTS Code :

8504.50.80.00

RoHS Status :

ROHS3 Compliant

Package / Case :

Nonstandard

Pbfree Code :

yes

Current Rating :

6A

Number of Terminations :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Shape :

WRAPAROUND

Operating Temperature :

-40°C~125°C

Packing Method :

TR

DC Current :

6.8A

Size / Dimension :

0.285Lx0.256W 7.25mmx6.50mm

Inductor Application :

POWER INDUCTOR

Tolerance :

±20%

Lead Free :

Lead Free

Number of Functions :

1

Published :

2009

Material - Core :

Metal Composite

Inductance :

2.2μH

Depth :

6.7mm

Packaging :

Tape and Reel (TR)

Inductor Type :

GENERAL PURPOSE INDUCTOR

Factory Lead Time :

22 Weeks

Case/Size Code :

2926

Mount :

Surface Mount

Radiation Hardening :

No

Termination :

SMD/SMT

Series :

CDMC6D28

Shielding :

yes

Test Frequency :

1MHz

Terminal Placement :

DUAL ENDED

Shape/Size Description :

RECTANGULAR PACKAGE
