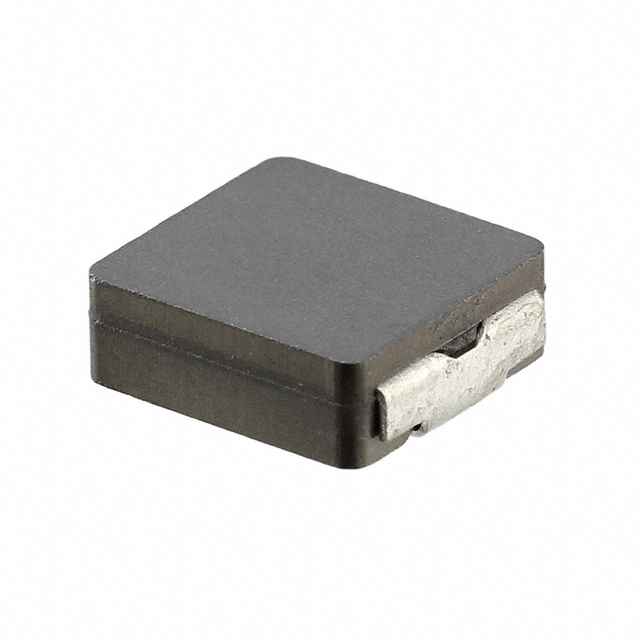

CDMC104NP-R36M

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

DC Resistance (DCR) :

1.1MOhm

Max DC Current :

25A

Packing Method :

TR

Radiation Hardening :

No

Termination :

SMD/SMT

Construction :

Molded

Inductor Application :

POWER INDUCTOR

Tolerance :

±20%

HTS Code :

8504.50.80.00

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shielding :

yes

Terminal Shape :

WRAPAROUND

Material - Core :

Metal Composite

Terminal Placement :

DUAL ENDED

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

JESD-609 Code :

e1

Mounting Type :

Surface Mount

Inductance :

360nH

Height :

4mm

Current Rating :

25A

Depth :

10.2mm

RoHS Status :

ROHS3 Compliant

Special Feature :

DCR IS MEASURED AT 10% TOLERANCE

Pbfree Code :

yes

Package / Case :

Nonstandard

Height Seated (Max) :

0.157 4.00mm

Case/Size Code :

4540

ECCN Code :

EAR99

Inductor Type :

GENERAL PURPOSE INDUCTOR

Shape/Size Description :

RECTANGULAR PACKAGE

Number of Functions :

1

Series :

CDMC104

Published :

2011

Operating Temperature :

-40°C~125°C

Current - Saturation :

28A

Factory Lead Time :

17 Weeks

Mount :

Surface Mount

Size / Dimension :

0.453Lx0.394W 11.50mmx10.00mm

Test Frequency :

1MHz

Number of Terminations :

2

Packaging :

Cut Tape (CT)
