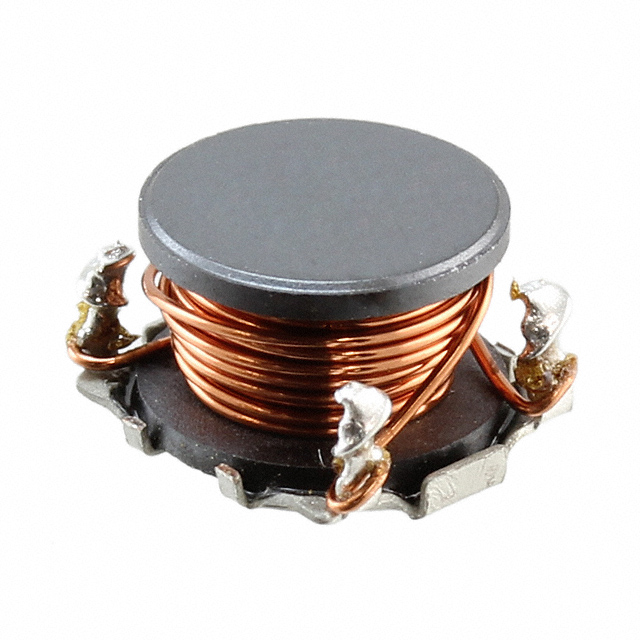

CDH74NP-331JC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Number of Terminations :

2

Mounting Type :

Surface Mount

Published :

2006

Case/Size Code :

3229

Tolerance :

±5%

Height Seated (Max) :

0.205 5.20mm

Series :

CDH74

Packing Method :

TR

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

14 Weeks

Current Rating :

400mA

Depth :

7.3mm

HTS Code :

8504.50.80.00

Test Frequency :

1kHz

DC Resistance (DCR) :

1.55Ohm Max

Shape/Size Description :

RECTANGULAR PACKAGE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Wirewound

Size / Dimension :

0.315Lx0.287W 8.00mmx7.30mm

Material - Core :

Ferrite

Radiation Hardening :

No

Terminal Placement :

DUAL ENDED

Inductor Application :

POWER INDUCTOR

Max DC Current :

400mA

Operating Temperature :

-40°C~100°C

Shielding :

No

Pbfree Code :

yes

Height :

5.2mm

Mount :

Surface Mount

Package / Case :

Nonstandard

Number of Functions :

1

Terminal Shape :

WRAPAROUND

Packaging :

Tape and Reel (TR)

Inductance :

330μH
