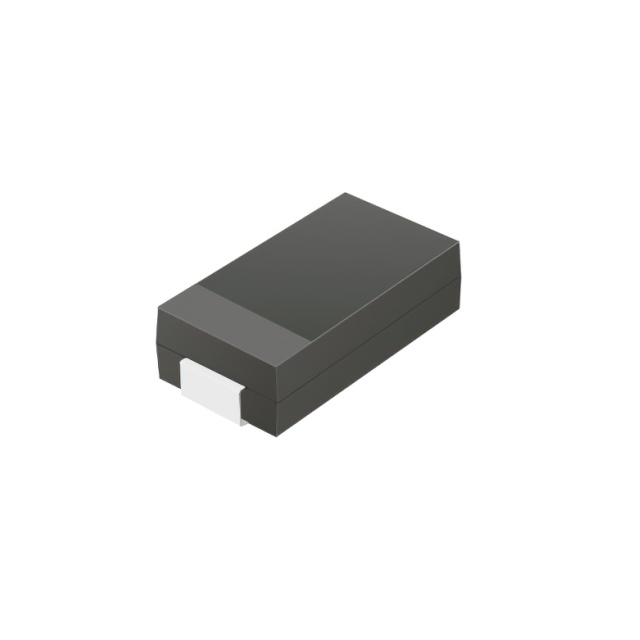

CDBB545LR-HF
Or copy the link below:
- Mfr.Part #
- CDBB545LR-HF
- Manufacturer
- Comchip Technology
- Package / Case
- DO-214AA, SMB
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 45V 5A SMB/DO-214
- Stock
- 120
- In Stock ：
- 120
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Rectifiers - Single
- Brand :
- Comchip Technology
- Supplier Device Package :
- DO-214AA (SMB)
- Product Status :
- Active
- Packaging :
- MouseReel
- Diode Type :
- Schottky
- Package / Case :
- DO-214AA, SMB
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Capacitance @ Vr, F :
- 1000pF @ 4V, 1MHz
- Voltage - Forward (Vf) (Max) @ If :
- 480 mV @ 5 A
- Manufacturer :
- Comchip Technology
- Operating Temperature Range :
- - 55 C to + 150 C
- Current - Reverse Leakage @ Vr :
- 500 μA @ 45 V
- Current - Average Rectified (Io) :
- 5A
- RoHS :
- Details
- Product Type :
- Schottky Diodes and Rectifiers
- Product Category :
- Schottky Diodes and Rectifiers
- Series :
- -
- Configuration :
- Single
- Mounting Style :
- SMD/SMT
- Package :
- Digi-Reel?
- Voltage - DC Reverse (Vr) (Max) :
- 45 V
- Subcategory :
- Diodes and Rectifiers
- Vf - Forward Voltage :
- 370 mV
- Maximum Operating Temperature :
- + 150 C
- Product :
- Schottky Rectifiers
- Minimum Operating Temperature :
- - 55 C
- Mounting Type :
- Surface Mount
- Operating Temperature - Junction :
- -55°C ~ 150°C
- Datasheets
- CDBB545LR-HF
CDBB545LR-HF Documents
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 480 mV @ 5 A -55°C ~ 150°C 500 μA @ 45 V MouseReel DO-214AA, SMB Surface Mount
CDBB545LR-HF Overview
CDBB545LR-HF Features
CDBB545LR-HF Applications
There are a lot of Comchip Technology
CDBB545LR-HF applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
