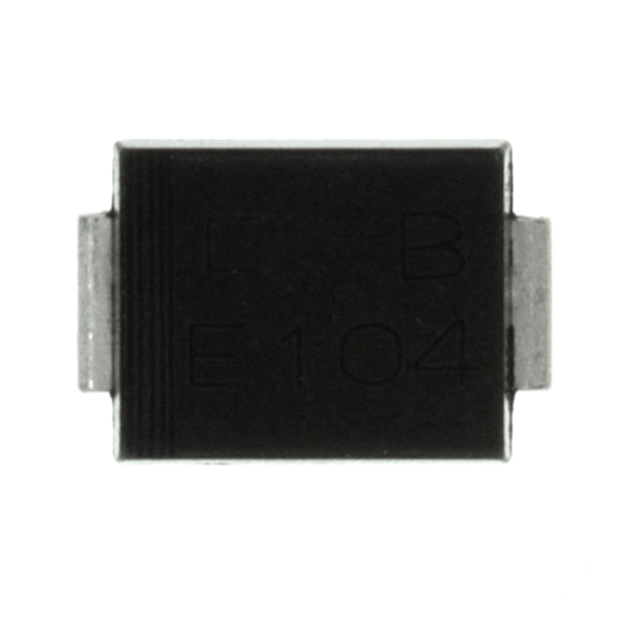

CDBB340-G
Or copy the link below:
- Mfr.Part #
- CDBB340-G
- Manufacturer
- Comchip Technology
- Package / Case
- DO-214AA, SMB
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 40V 3A DO214AA
- Stock
- 5,179
- In Stock ：
- 5,179
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Rectifiers - Single
- Output Current-Max :
- 3A
- Packaging :
- Tape and Reel (TR)
- Max Reverse Voltage (DC) :
- 40V
- Number of Elements :
- 1
- HTS Code :
- 8541.10.00.80
- Operating Temperature (Max) :
- 150°C
- Voltage - Forward (Vf) (Max) @ If :
- 500mV @ 3A
- Max Surge Current :
- 80A
- Base Part Number :
- CDBB340
- Average Rectified Current :
- 3A
- Mount :
- Surface Mount
- Max Reverse Leakage Current :
- 500μA
- Configuration :
- Single
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Operating Temperature - Junction :
- 125°C Max
- Current - Reverse Leakage @ Vr :
- 500μA @ 40V
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Published :
- 2011
- Diode Type :
- Schottky
- Package / Case :
- DO-214AA, SMB
- Datasheets
- CDBB340-G
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 500mV @ 3A 125°C Max 500μA @ 40V Tape & Reel (TR) DO-214AA, SMB Surface Mount
CDBB340-G Overview
A maximum reverse leakage current of 500μA volts is produced by this device.This device has an average rectified current of 3A volts.Surge currents can be used up to 80A.The maximum output current is 3A.
CDBB340-G Features
a maximal reverse leakage current of 500μA volts
an average rectified current of 3A volts
3A is the maximum value
CDBB340-G Applications
There are a lot of Comchip Technology
CDBB340-G applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
