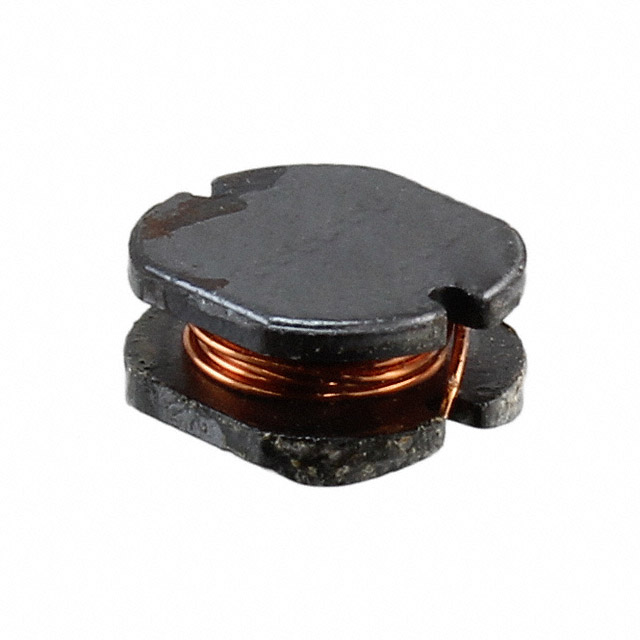

CD73NP-331KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Series :

CD73

Packaging :

Tape and Reel (TR)

Termination :

SMD/SMT

Number of Terminations :

2

Max DC Current :

280mA

Mounting Type :

Surface Mount

DC Resistance (DCR) :

1.495Ohm Max

Radiation Hardening :

No

Material - Core :

Ferrite

ECCN Code :

EAR99

Inductor Application :

POWER INDUCTOR

Factory Lead Time :

16 Weeks

Size / Dimension :

0.307Lx0.276W 7.80mmx7.00mm

Depth :

7.3mm

Test Frequency :

1kHz

Inductance :

330μH

Current Rating :

280mA

Mount :

Surface Mount

Terminal Placement :

DUAL ENDED

Tolerance :

±10%

Inductor Type :

GENERAL PURPOSE INDUCTOR

Height :

4mm

Published :

2006

Case/Size Code :

3128

Height Seated (Max) :

0.157 4.00mm

Shape/Size Description :

RECTANGULAR PACKAGE

HTS Code :

8504.50.80.00

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shielding :

No

RoHS Status :

ROHS3 Compliant

Weight :

500.000539mg

Operating Temperature :

-30°C~100°C

Number of Functions :

1

Terminal Shape :

ONE SURFACE

Self Resonant Frequency :

5.6MHz

Pbfree Code :

yes

Package / Case :

Nonstandard
