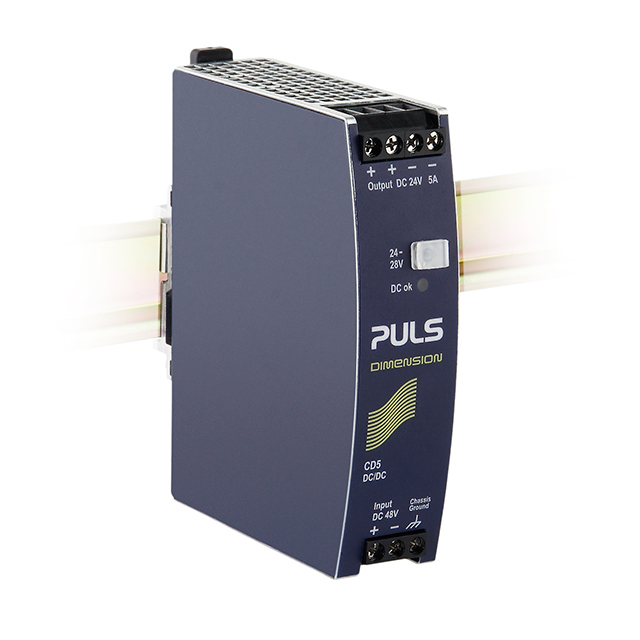

CD5.242

Manufacturer :

PULS

Product Category :

Number of Functions :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Terminations :

8

Terminal Form :

UNSPECIFIED

Additional Feature :

IT ALSO OPERATES WITH INPUT VOLTAGE 30.5 TO 36

JESD-30 Code :

R-PXMA-X8

Input Voltage-Nom :

48V

Mount :

DIN Rail

Nominal Input Voltage :

48V

Packaging :

Bulk

Terminal Position :

UNSPECIFIED

Moisture Sensitivity Level (MSL) :

Not Applicable

Trim/Adjustable Output :

yes

Power (Watts) :

120W

Voltage - Input (Max) :

60V

RoHS Status :

RoHS Compliant

Type :

Enclosed

Factory Lead Time :

2 Weeks

Current - Output 1 :

5A

Efficiency :

90.3%

Series :

DIMENSION CD (92 ~ 120W)

Depth :

102mm

Power Rating :

120W

Output Current :

5A

Number of Outputs :

1

Isolation Voltage :

500V

Voltage - Input (Min) :

36V

Size / Dimension :

4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm

Weight :

425g

Operating Temperature :

-25°C~70°C With Derating

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Applications :

ITE (Commercial)

Output Voltage :

24V

Package / Case :

120

Mounting Type :

DIN Rail

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pbfree Code :

yes
