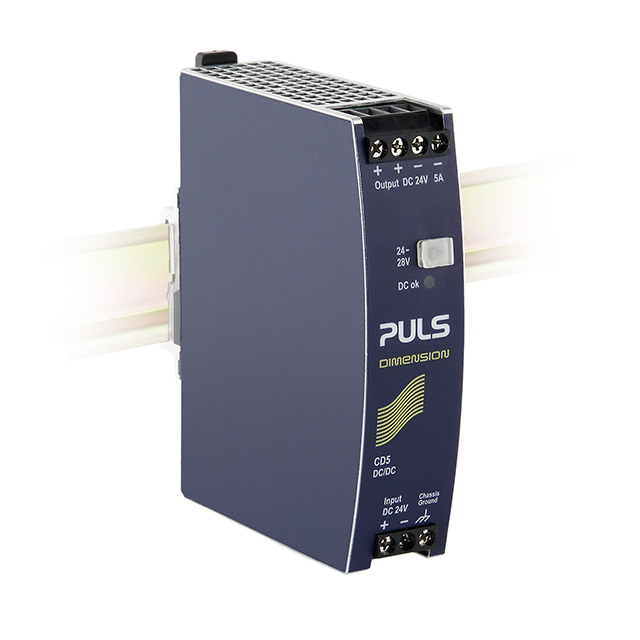

CD5.241

Manufacturer :

PULS

Product Category :

Type :

Enclosed

Mounting Type :

DIN Rail

Package / Case :

120

Voltage - Input (Max) :

32.4V

Output Voltage :

24V

Power Rating :

120W

Isolation Voltage :

500V

Series :

DIMENSION CD (92 ~ 120W)

Output Current :

5A

Applications :

ITE (Commercial)

Trim/Adjustable Output :

yes

Current - Output 1 :

5A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Terminal Position :

UNSPECIFIED

Input Voltage-Nom :

24V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

UNSPECIFIED

Factory Lead Time :

2 Weeks

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Number of Terminations :

8

Number of Functions :

1

Number of Outputs :

1

Nominal Input Voltage :

24V

Weight :

425g

Mount :

DIN Rail

Operating Temperature :

-25°C~70°C With Derating

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

Not Applicable

Efficiency :

90.3%

Depth :

102mm

JESD-30 Code :

R-XXMA-X8

Voltage - Input (Min) :

18V

Size / Dimension :

4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm

Packaging :

Bulk
