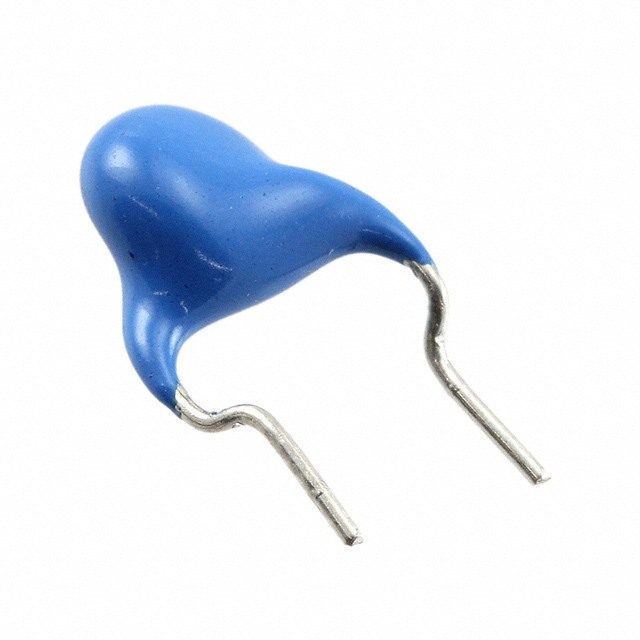

CC45SL3JD220JYNNA
Or copy the link below:
- Mfr.Part #
- CC45SL3JD220JYNNA
- Manufacturer
- TDK Corporation
- Package / Case
- Radial, Disc
- Datasheet
- Download
- Description
- CAP CER 22PF 6KV SL RADIAL
- Stock
- 2,076
- In Stock ：
- 2,076
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TDK Corporation
- Product Category :
- Ceramic Capacitors
- Temperature Coefficient :
- SL
- Mount :
- Through Hole
- JESD-609 Code :
- e3
- Lead/Base Style :
- Straight
- Size Code :
- 3024
- Lead Pitch :
- 5.0038mm
- ECCN Code :
- EAR99
- Factory Lead Time :
- 10 Weeks
- Lifecycle Status :
- Production (Last Updated: 1 month ago)
- Capacitance :
- 22pF
- Rated (DC) Voltage (URdc) :
- 6000V
- Lead Spacing :
- 0.295 7.50mm
- Mounting Type :
- Through Hole
- Tolerance :
- ±5%
- Applications :
- GENERAL PURPOSE
- Height Seated (Max) :
- 0.453 11.50mm
- Contact Plating :
- Tin
- Dielectric Material :
- Ceramic
- Lead Free :
- Lead Free
- Published :
- 2001
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 6000V 6kV
- Size / Dimension :
- 0.295Dia 7.50mm
- Multilayer :
- No
- Length :
- 7.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Shape :
- Wire
- Width :
- 6mm
- Pbfree Code :
- yes
- Number of Terminations :
- 2
- HTS Code :
- 8532.23.00.60
- Series :
- CC45
- Capacitor Type :
- CERAMIC CAPACITOR
- Lead Style :
- Formed Leads - Kinked
- Temperature Characteristics Code :
- SL
- Package / Case :
- Radial, Disc
- Packaging :
- Bulk
- Operating Temperature :
- -25°C~125°C
- Feature :
- High Voltage, Low Dissipation Factor
- Terminal Pitch :
- 7.5mm
- Datasheets
- CC45SL3JD220JYNNA
CC45SL3JD220JYNNA Documents
CC45 22pF 6000V 6kV Ceramic Capacitor ±5% SL 0.295Dia 7.50mm -25°C~125°C 2 Terminations High Voltage, Low Dissipation Factor Through Hole Radial, Disc
