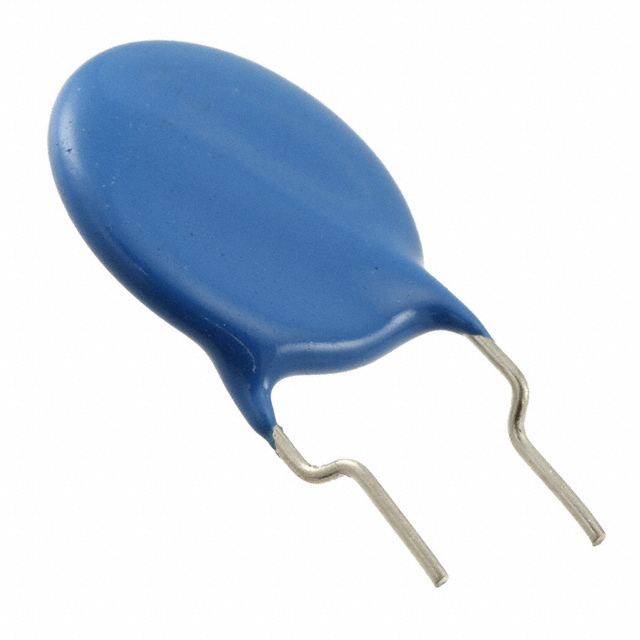

CC45SL3FD331JYNNA
Or copy the link below:
- Mfr.Part #
- CC45SL3FD331JYNNA
- Manufacturer
- TDK Corporation
- Package / Case
- Radial, Disc
- Datasheet
- Download
- Description
- CAP CER 330PF 3KV SL RADIAL
- Stock
- 46,741
- In Stock ：
- 46,741
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TDK Corporation
- Product Category :
- Ceramic Capacitors
- Number of Terminations :
- 2
- HTS Code :
- 8532.23.00.60
- Lead Pitch :
- 5.0038mm
- Lead Style :
- Formed Leads - Kinked
- Terminal Shape :
- Wire
- Operating Temperature :
- -25°C~125°C
- Packaging :
- Bulk
- Capacitor Type :
- CERAMIC CAPACITOR
- Lead/Base Style :
- Straight
- Pbfree Code :
- yes
- Temperature Coefficient :
- SL
- Rated (DC) Voltage (URdc) :
- 3000V
- Tolerance :
- ±5%
- Terminal Finish :
- Tin (Sn) - with Nickel (Ni) barrier
- Voltage - Rated :
- 3000V 3kV
- Width :
- 6mm
- Applications :
- GENERAL PURPOSE
- Terminal Pitch :
- 7.5mm
- Feature :
- High Voltage, Low Dissipation Factor
- Published :
- 2001
- Capacitance :
- 330pF
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Height Seated (Max) :
- 0.709 18.00mm
- JESD-609 Code :
- e3
- Temperature Characteristics Code :
- SL
- Mount :
- Through Hole
- Series :
- CC45
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Length :
- 14mm
- Multilayer :
- No
- Size / Dimension :
- 0.551Dia 14.00mm
- Size Code :
- 5524
- Dielectric Material :
- Ceramic
- Package / Case :
- Radial, Disc
- Lead Spacing :
- 0.295 7.50mm
- Datasheets
- CC45SL3FD331JYNNA
CC45SL3FD331JYNNA Documents
CC45 330pF 3000V 3kV Ceramic Capacitor ±5% SL 0.551Dia 14.00mm -25°C~125°C 2 Terminations High Voltage, Low Dissipation Factor Through Hole Radial, Disc
CC45SL3FD331JYNNA Overview
For this device, the size/dimension of the program is 0.551Dia 14.00mm.As a general rule, temperature coefficient of resistance is simply the change in electrical resistance of a substance per degree change in temperature, and its value is SL.An unbalanced capacitor has a pitch of 1 (the distance between adjacent threads).
CC45SL3FD331JYNNA Features
a size/dimension of 0.551Dia 14.00mm
with SL being the highest temperature coefficient
CC45SL3FD331JYNNA Applications
There are a lot of TDK Corporation
CC45SL3FD331JYNNA applications of ceramic capacitors.
- General electronic equipment
- Mobile devices
- Servers, PCs, tablets
- Power supply circuit
