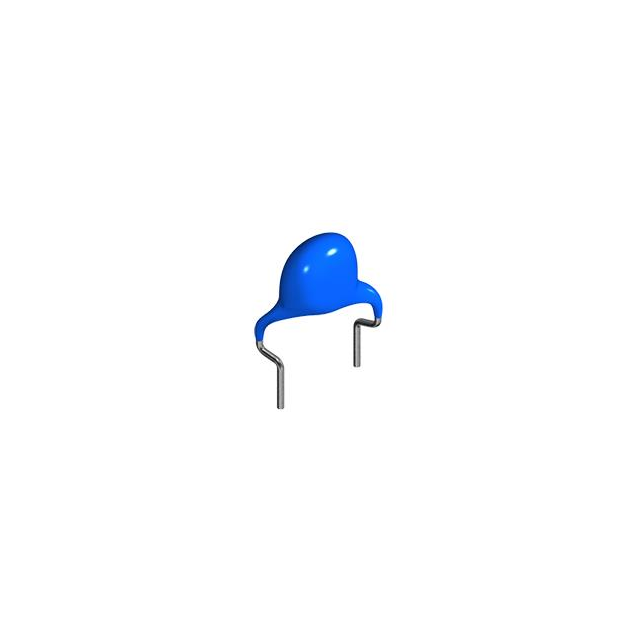

CC45SL3DD120JYVNA
Or copy the link below:
- Mfr.Part #
- CC45SL3DD120JYVNA
- Manufacturer
- TDK Corporation
- Package / Case
- Radial, Disc
- Datasheet
- Download
- Description
- CAP CER 12PF 2KV SL RADIAL
- Stock
- 45,761
- In Stock ：
- 45,761
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TDK Corporation
- Product Category :
- Ceramic Capacitors
- Applications :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- Temperature Characteristics Code :
- SL
- Capacitance :
- 12pF
- Size / Dimension :
- 0.217Dia 5.50mm
- Package / Case :
- Radial, Disc
- HTS Code :
- 8532.23.00.60
- Pbfree Code :
- yes
- Length :
- 5.5mm
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Factory Lead Time :
- 10 Weeks
- Dielectric Material :
- Ceramic
- Tolerance :
- ±5%
- Height Seated (Max) :
- 0.374 9.50mm
- Terminal Shape :
- Wire
- Number of Terminations :
- 2
- Multilayer :
- No
- Rated (DC) Voltage (URdc) :
- 2000V
- Packing Method :
- Tape
- Voltage - Rated :
- 2000V 2kV
- Published :
- 2013
- ECCN Code :
- EAR99
- Terminal Pitch :
- 5mm
- Contact Plating :
- Tin
- Temperature Coefficient :
- SL
- Operating Temperature :
- -25°C~125°C
- Packaging :
- Bulk
- Series :
- CC45
- Size Code :
- 2220
- Surface Mount :
- No
- Feature :
- High Voltage, Low Dissipation Factor
- RoHS Status :
- ROHS3 Compliant
- Capacitor Type :
- CERAMIC CAPACITOR
- Lead Spacing :
- 0.197 5.00mm
- Width :
- 5mm
- JESD-609 Code :
- e3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Style :
- Formed Leads - Kinked
- Datasheets
- CC45SL3DD120JYVNA
CC45SL3DD120JYVNA Documents
CC45 12pF 2000V 2kV Ceramic Capacitor ±5% SL 0.217Dia 5.50mm -25°C~125°C 2 Terminations High Voltage, Low Dissipation Factor Through Hole Radial, Disc
