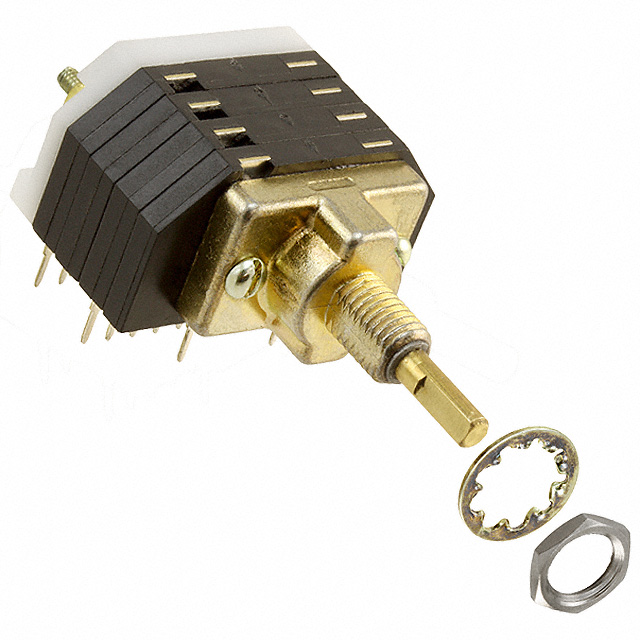

C3P0604N-A

Manufacturer :

Electroswitch

Product Category :

PCB Hole Count :

18

Max Voltage Rating (AC) :

125V

Reach Compliance Code :

Unknown

RoHS Status :

RoHS Compliant

Contact Timing :

Non-Shorting (BBM)

Index Stops :

Adjustable

Index Angle :

30 °

Dielectric Withstanding Voltage :

1000VAC V

Orientation :

RIGHT ANGLE

Switch Type :

ROTARY SWITCH

Panel Cutout Dimensions :

Circular - 6.76mm Dia

Max Voltage Rating (DC) :

28V

Termination :

PC Pin

Contact Style :

Non-Shorting

Mechanical Life :

25000 cycles

Voltage - Rated DC :

28V

Number of Poles per Deck :

3

Length - Termination :

0.14 inch

Sealing :

Epoxy

Body Breadth :

17.78 mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Throw Configuration :

3P4T, 6P4T

Depth :

29.9974mm

Current Rating (Amps) :

100mA AC 250mA DC

Depth Behind Panel :

30.00mm

Voltage - Rated AC :

125V

Insulation Material :

Polyester

Actuator Length :

9.52mm

Contact Function :

On-On

Published :

1997

Actuator Type :

Flatted (3.17mm Dia)

Insulation Resistance :

10GOhm

Mounting Type :

Panel Mount, Through Hole, Right Angle

Current Rating :

250mA

Contact Material :

Brass

Series :

C3

Factory Lead Time :

6 Weeks

Body Height :

17.78mm

ECCN Code :

EAR99

Contact Current(AC)-Max :

0.1A

Number of Positions :

2 ~ 4

Diameter :

3.17mm

Additional Feature :

NON-CORROSIVE MATERIALS

Circuit per Deck :

3P4T

Mount :

Panel, Through Hole

Contact Finish :

Silver

Number of Decks :

2

Termination Style :

PC Pin
