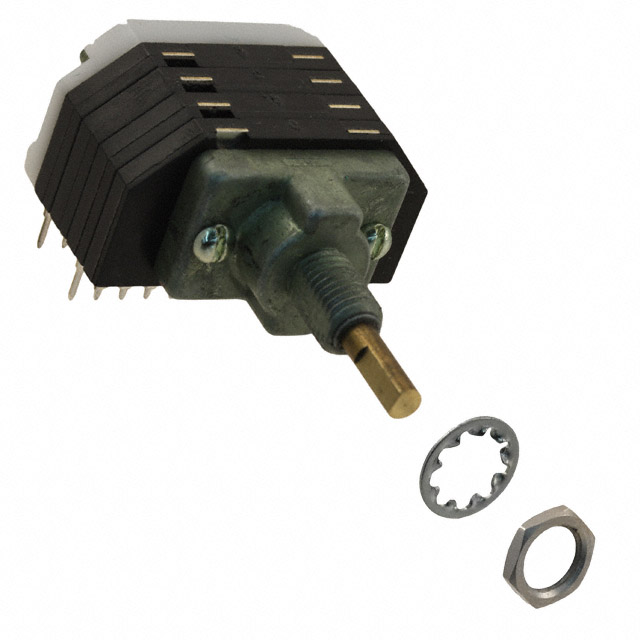

C3P0212N-A
Or copy the link below:
- Mfr.Part #
- C3P0212N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-12POS 100MA 125V
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Mount :
- Panel, Through Hole
- Number of Positions :
- 2 ~ 12
- Termination :
- PC Pin
- Contact Finish :
- Silver
- Reach Compliance Code :
- Unknown
- Actuator Type :
- Flatted (3.17mm Dia)
- Throw Configuration :
- DP12T, SP12T
- Lead Free :
- Contains Lead
- Depth Behind Panel :
- 30.00mm
- Number of Decks :
- 2
- Contact Resistance :
- 0.03mOhm
- Current Rating (Amps) :
- 100mA AC 250mA DC
- Actuator Length :
- 9.52mm
- Body Length or Diameter :
- 30.48mm
- Index Angle :
- 30 °
- Insulation Resistance :
- 10GOhm
- Additional Feature :
- NON-CORROSIVE MATERIALS
- RoHS Status :
- RoHS Compliant
- Mechanical Life :
- 25000 cycles
- Max Voltage Rating (DC) :
- 28V
- Current Rating :
- 250mA
- Factory Lead Time :
- 6 Weeks
- Voltage - Rated DC :
- 28V
- PCB Hole Count :
- 18
- Series :
- C3
- Sealing :
- Epoxy
- Number of Pins :
- 12
- Circuit per Deck :
- SP12T
- Contact Material :
- Brass
- Insulation Material :
- Polyester
- Contact Timing :
- Non-Shorting (BBM)
- Contact Function :
- On-On
- Max Voltage Rating (AC) :
- 125V
- Index Stops :
- Adjustable
- Voltage - Rated AC :
- 125V
- Orientation :
- RIGHT ANGLE
- Panel Cutout Dimensions :
- Circular - 6.76mm Dia
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Contact Style :
- Non-Shorting
- Termination Style :
- PC Pin
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Switch Type :
- ROTARY SWITCH
- Number of Poles per Deck :
- 1
- Datasheets
- C3P0212N-A
