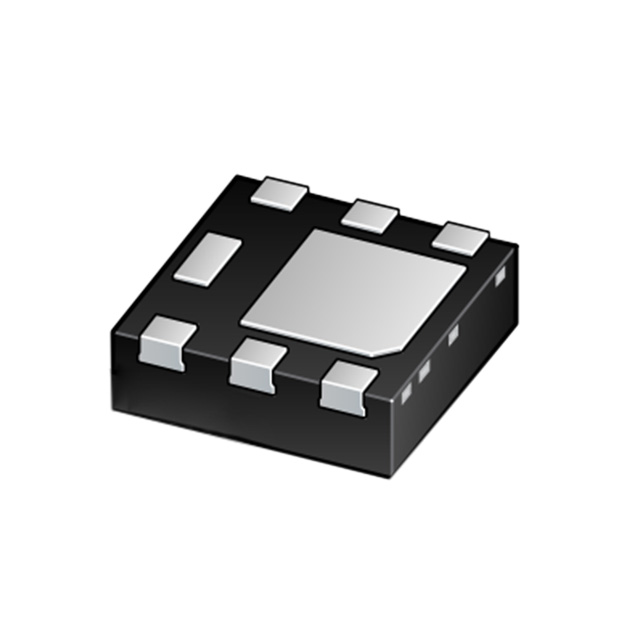

BUK4D38-20PX

Manufacturer :

Nexperia

Product Category :

Transistors - FETs, MOSFETs - Single

Series :

Automotive, AEC-Q101, TrenchMOS?

Supplier Device Package :

DFN2020MD-6

FET Feature :

-

Drain to Source Voltage (Vdss) :

20 V

Continuous Drain Current Id :

6

RoHS :

Details

Mounting Type :

Surface Mount

MSL :

MSL 1 - Unlimited

Power Dissipation :

2

Transistor Type :

1 P-Channel

Package :

Tape and Reel (TR)

Product Type :

MOSFET

Product Status :

Active

Rds On (Max) @ Id, Vgs :

33mOhm @ 6A, 8V

Operating Temperature :

-55°C ~ 175°C (TJ)

Package / Case :

6-UDFN Exposed Pad

Input Capacitance (Ciss) (Max) @ Vds :

1025 pF @ 10 V

Power Dissipation (Max) :

2W (Ta), 19W (Tc)

Current - Continuous Drain (Id) @ 25°C :

6A (Ta), 18A (Tc)

Channel Mode :

Enhancement

Subcategory :

MOSFETs

Manufacturer :

Nexperia

Gate Charge (Qg) (Max) @ Vgs :

16 nC @ 4.5 V

Brand :

Nexperia

Maximum Operating Temperature :

+ 175 C

Mounting Style :

SMD/SMT

Minimum Operating Temperature :

- 55 C

Channel Type :

P Channel

FET Type :

P-Channel

Packaging :

MouseReel

Vgs (Max) :

±12V

Vgs(th) (Max) @ Id :

1.3V @ 250µA

Drive Voltage (Max Rds On, Min Rds On) :

2.5V, 8V

Qualification :

AEC-Q101

Transistor Polarity :

P-Channel

Number of Channels :

1 Channel

Product Category :

MOSFET

Rise Time :

17 ns
