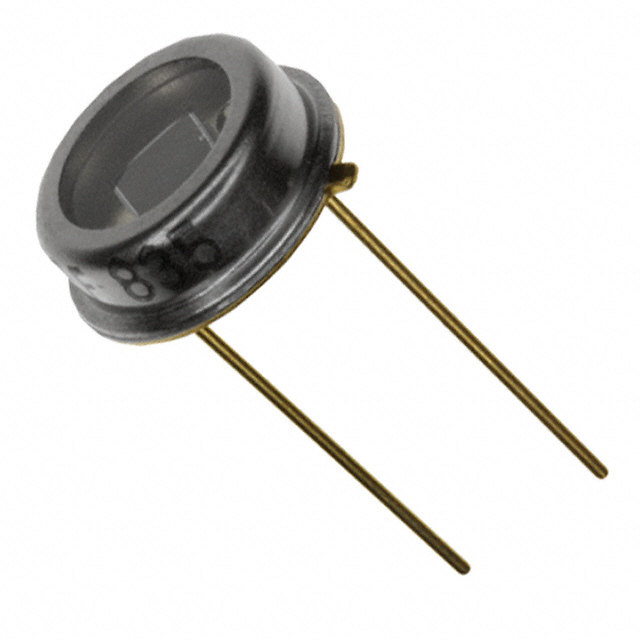

BPW20RF

Manufacturer :

Vishay

Product Category :

Optical Sensors - Photodiodes

REACH SVHC :

Unknown

Light Current-Nom :

0.06mA

Capacitance :

1.2nF

Viewing Angle :

100°

Additional Feature :

HIGH SENSITIVITY

Packaging :

Bulk

Max Junction Temperature (Tj) :

125°C

RoHS Status :

ROHS3 Compliant

Infrared Range :

yes

Response Time :

3.4 µs

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Breakdown Voltage :

10V

Width :

9.1mm

JESD-609 Code :

e3

Mount :

PCB, Through Hole

Number of Pins :

2

Shape :

Round

Max Power Dissipation :

300mW

Number of Functions :

1

Forward Current :

50mA

Ambient Temperature Range High :

125°C

Spectral Range :

550nm ~ 1040nm

Configuration :

Single

Operating Temperature :

-40°C~125°C

Lead Free :

Lead Free

Reverse Voltage (DC) :

10V

Semiconductor Material :

SILICON

Fall Time (Typ) :

3.7 μs

Length :

9.1mm

Mounting Type :

Through Hole

Pbfree Code :

yes

Breakdown Voltage :

10V

Lens Style :

Flat

Package / Case :

Radial, Lensed Metal Can, 2 Lead

HTS Code :

8541.40.60.50

Wavelength - Peak :

920 nm

Power Dissipation :

300mW

Max Reverse Voltage (DC) :

10V

Factory Lead Time :

12 Weeks

Active Area :

7.5mm2

Rise Time :

3.4μs

Dark Current :

2nA

Terminal Finish :

Matte Tin (Sn)

Height :

3.3mm

Forward Voltage :

1.3V

Radiation Hardening :

No

Diode Type :

Pin

Size :

5.9mm
