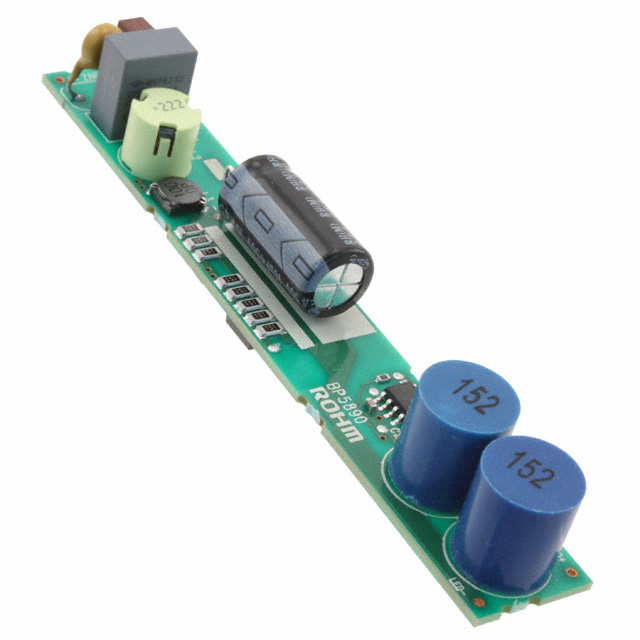

BP5890

Manufacturer :

ROHM Semiconductor

Product Category :

Series :

BP

Type :

Constant Current

Width :

17.018mm

Feature :

OTP

Number of Outputs :

1

Power (Watts) :

10W

Package / Case :

Module

Current - Output (Max) :

350mA

Operating Temperature :

-20°C~60°C

Max Output Current :

350mA

Mounting Type :

Chassis Mount

Topology :

AC DC Converter

Published :

2011

Lead Free :

Lead Free

Max Input Voltage (AC) :

264V

Mount :

Chassis Mount

Voltage - Input (Min) :

90VAC

Output Current :

350mA

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

100.076mm

Output Current per Channel :

350mA

Voltage - Output :

10V~28.8V

Size / Dimension :

3.94Lx0.67W x 0.63 H 100.0mmx17.0mmx16.0mm

Height :

16.002mm

Operating Supply Voltage :

264V

Min Operating Temperature :

-20°C

Max Operating Temperature :

60°C

Max Power Dissipation :

10W

Min Input Voltage (AC) :

90V

Voltage - Input (Max) :

264VAC
