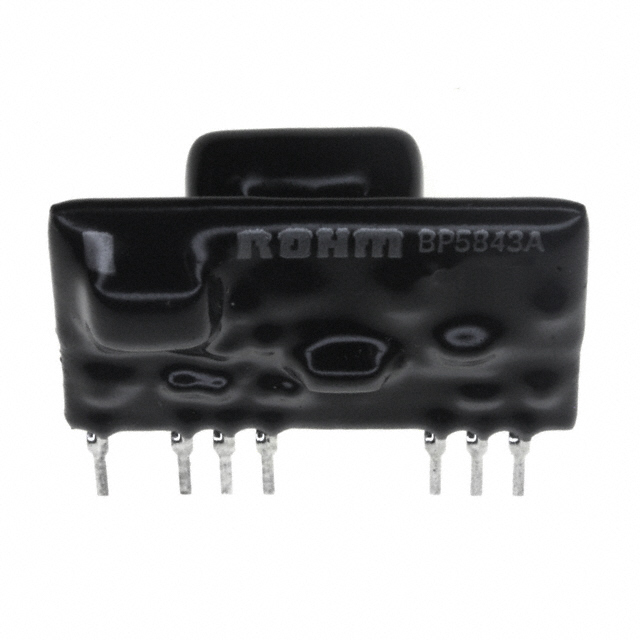

BP5843A

Manufacturer :

ROHM Semiconductor

Product Category :

LED Drivers

Voltage - Supply (Min) :

113V

Packaging :

Tray

Terminal Finish :

Tin/Copper (Sn/Cu)

Pbfree Code :

yes

Voltage - Supply (Max) :

170V

Voltage - Output :

2.5V~12V

Number of Segments :

1

Type :

AC DC Offline Switcher

Qualification Status :

Not Qualified

JESD-609 Code :

e2

Current - Output / Channel :

350mA

Mount :

Through Hole

Terminal Pitch :

2.54mm

High Level Output Current :

369mA

Number of Outputs :

1

Peak Reflow Temperature (Cel) :

260

Low Level Output Current :

332mA

ECCN Code :

EAR99

Supply Voltage :

141V

Number of Functions :

1

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Pins :

11

Multiplexed Display Capability :

No

Number of Terminations :

7

Terminal Position :

Single

Base Part Number :

BP584*

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

JESD-30 Code :

R-XSMA-T7

Operating Temperature :

-20°C~80°C TA

Published :

2010

Lead Free :

Lead Free

Package / Case :

11-SIP, 7 Leads
