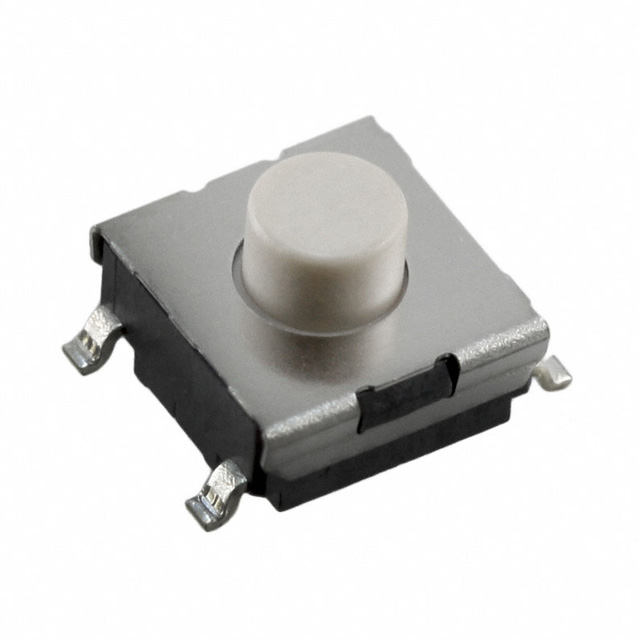

B3FS-1012P
Or copy the link below:
- Mfr.Part #
- B3FS-1012P
- Manufacturer
- Omron Electronic Components
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 1,000
- In Stock ：
- 1,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Depth :
- 8mm
- Circuit :
- SPST-NO
- Contact Plating :
- Silver
- Outline :
- 6.30mm x 6.00mm
- Contact Current Rating :
- 50mA
- Actuator Orientation :
- Top Actuated
- Illumination :
- Non-Illuminated
- Contact Bounce Time-Max :
- 5ms
- Packaging :
- Tape and Reel (TR)
- Max Voltage Rating (DC) :
- 24V
- Voltage - Rated DC :
- 24V
- Actuator Type :
- Standard
- Switch Type :
- KEYPAD SWITCH
- Max Current Rating :
- 50mA
- Body Height :
- 2.6mm
- Body Breadth :
- 6 mm
- Actuator Height off PCB, Vertical :
- 4.30mm
- Termination Style :
- Gull wing
- Radiation Hardening :
- No
- Contact Resistance :
- 100MOhm
- Contact Current(DC)-Max :
- 0.05A
- Number of Switches :
- 1
- Orientation :
- Straight
- Operating Force :
- 150gf
- Series :
- B3FS
- Throw Configuration :
- SPST
- Switch Travel :
- 0.25mm
- Weight :
- 200mg
- Factory Lead Time :
- 18 Weeks
- Actuator Length :
- 1.7mm
- HTS Code :
- 8536.50.90.40
- ECCN Code :
- EAR99
- Electrical Life :
- 300000 cycles
- Switch Function :
- Off-Mom
- Mechanical Life :
- 300,000 Cycles
- Package / Case :
- SMD/SMT
- Termination :
- Gull wing
- Published :
- 2002
- Pbfree Code :
- yes
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Packing Method :
- Tape and Reel
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- RoHS Status :
- RoHS Compliant
- Mount :
- Surface Mount
- Operating Temperature :
- -25°C~70°C
- Current Rating :
- 50mA
- Length :
- 6.3mm
- Datasheets
- B3FS-1012P
B3FS-1012P Documents
B3FS-1012P datasheet pdf and Tactile Switches product details from Omron Electronics Inc-EMC Div stock available at
