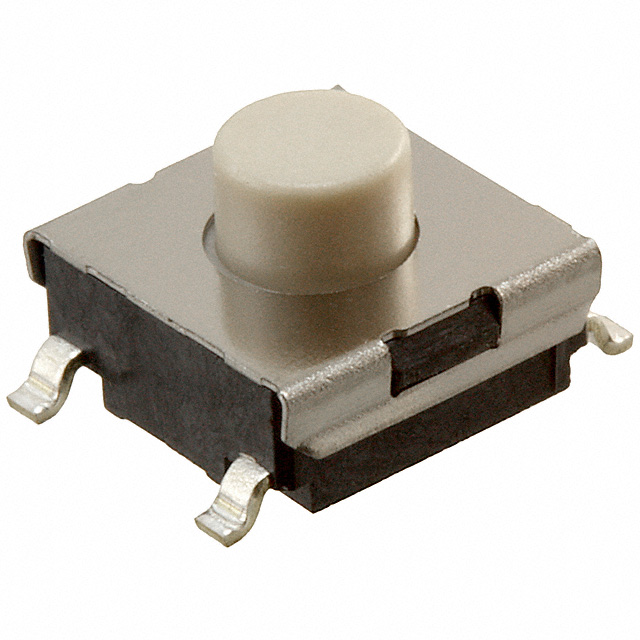

B3FS-1012
Or copy the link below:
- Mfr.Part #
- B3FS-1012
- Manufacturer
- Omron Electronic Components
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 85,441
- In Stock ：
- 85,441
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Height :
- 4.3mm
- Switch Function :
- Off-Mom
- Factory Lead Time :
- 22 Weeks
- Pbfree Code :
- yes
- Insulation Resistance :
- 100MOhm
- Weight :
- 200mg
- Width :
- 6mm
- Contact Current(DC)-Max :
- 0.05A
- Contact Plating :
- Silver
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Actuator Height off PCB, Vertical :
- 4.30mm
- ECCN Code :
- EAR99
- Contact Bounce Time-Max :
- 5ms
- Actuator Length :
- 1.7mm
- Contact Material :
- ABS, Silver
- Voltage - Rated DC :
- 24V
- Switch Type :
- KEYPAD SWITCH
- Depth :
- 8mm
- HTS Code :
- 8536.50.90.40
- Illumination Type :
- Illuminated, Non-Illuminated
- Number of Switches :
- 1
- Length :
- 6.3mm
- Operating Temperature :
- -25°C~70°C
- Current Rating :
- 50mA
- Orientation :
- Straight
- Actuator Orientation :
- Top Actuated
- Termination Style :
- Gull wing
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Operating Force :
- 150gf
- Circuit :
- SPST-NO
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- B3FS
- Illumination :
- Non-Illuminated
- Mechanical Life :
- 300,000 Cycles
- Electrical Life :
- 300000 cycles
- Contact Resistance :
- 100MOhm
- Max Current Rating :
- 50mA
- Throw Configuration :
- SPST
- Switch Travel :
- 0.25mm
- Radiation Hardening :
- No
- Published :
- 2003
- Number of Poles :
- 1
- Contact Current Rating :
- 50mA
- Packaging :
- Bulk
- Package / Case :
- SMD/SMT
- Termination :
- Gull wing
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Actuator Type :
- Standard
- Packing Method :
- Bag
- Outline :
- 6.30mm x 6.00mm
- Max Voltage Rating (DC) :
- 24V
- REACH SVHC :
- No SVHC
- Datasheets
- B3FS-1012
