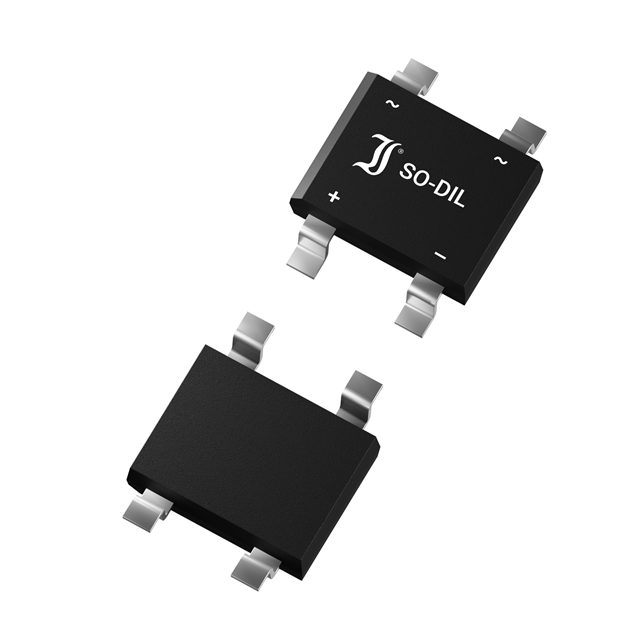

B380S15A

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Non-rep Pk Forward Current-Max :

50 A

Number of Terminals :

4

HTS Code :

8541.10.00.80

Supplier Temperature Grade :

COMMERCIAL

Maximum Operating Temperature (°C) :

150

HTS :

8541.10.00.80

Rep Pk Reverse Voltage-Max :

800 V

Peak RMS Reverse Voltage (V) :

380

Peak Reverse Recovery Time (ns) :

1500(Typ)

Output Current-Max :

1.5 A

RoHS Status :

Yes with exemptions

Peak Reverse Current (uA) :

5

Terminal Form :

Gull wing

Peak Non-Repetitive Forward Surge Current (A) :

50

Military :

No

Diode Element Material :

SILICON

ECCN (US) :

EAR99

Package Length :

8.3

Number of Elements :

4

Surface Mount :

yes

Terminal Position :

Dual

Package Height :

2.5

Packaging :

Tape and Reel

Mounting :

Surface Mount

Package Shape :

RECTANGULAR

Bridge Type :

Single Phase

Pin Count :

4

Diode Type :

BRIDGE RECTIFIER DIODE

AEC Qualified :

yes

Peak Forward Voltage (V) :

1.1@1A

Package Width :

6.4

Configuration :

Single

Reach Compliance Code :

Compliant

Additional Feature :

UL RECOGNIZED

PCB changed :

4

Supplier Package :

SO-DIP SMD

Peak Average Forward Current (A) :

1.5@Ta=50C

Peak Reverse Repetitive Voltage (V) :

800

JESD-30 Code :

R-PDSO-G4

Manufacturer :

Diotec Semiconductor AG

Number of Phases :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Minimum Operating Temperature (°C) :

-50

Qualification Status :

Not Qualified
