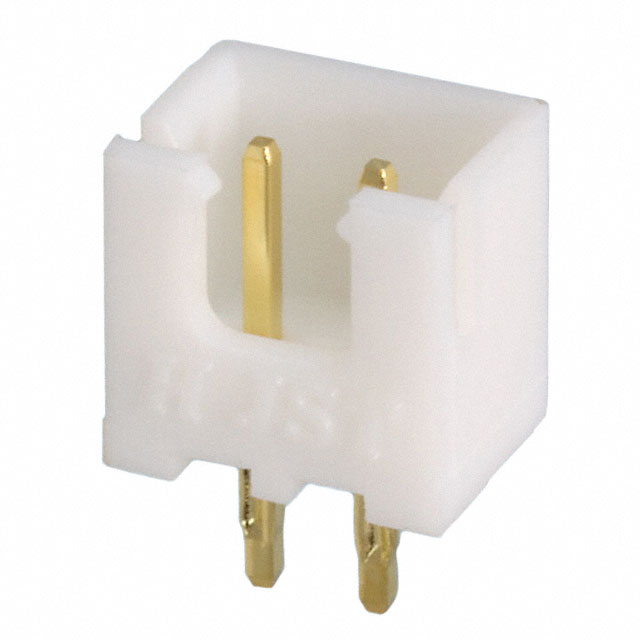

B2B-XH-A-GU
Or copy the link below:
- Mfr.Part #
- B2B-XH-A-GU
- Manufacturer
- JST
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.5MM
- Stock
- 1,979
- In Stock ：
- 1,979
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JST
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Brass
- Factory Lead Time :
- 16 Weeks
- Packaging :
- Bulk
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- DIN Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- Contact Finish - Mating :
- Gold
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Stack Height (Mating) :
- 9.8mm
- Published :
- 2010
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.098 2.50mm
- Style :
- Board to Cable/Wire
- Operating Temperature :
- -25°C~85°C
- Option :
- GENERAL PURPOSE
- Contact Length - Post :
- 0.134 3.40mm
- Number of Rows :
- 1
- Fastening Type :
- Detent Lock
- Additional Feature :
- Top Entry
- Voltage - Rated :
- 250V
- Insulation Height :
- 0.276 7.00mm
- Series :
- XH
- Insulation Color :
- Natural
- JESD-609 Code :
- e3
- IEC Conformance :
- No
- Contact Finish Thickness - Mating :
- 16.0μin 0.41μm
- Filter Feature :
- No
- Current Rating (Amps) :
- 3A
- Termination :
- Press-Fit, Solder
- Mixed Contacts :
- No
- Pbfree Code :
- No
- Number of Positions :
- 2
- Mounting Type :
- Through Hole
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Connector Type :
- Header
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Lead Free :
- Lead Free
- Datasheets
- B2B-XH-A-GU
B2B-XH-A-GU Documents
XH Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole Gold Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.276 7.00mm Height
B2B-XH-A-GU Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the XH Series.Among other features are TOP ENTRY, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -25°C~85°C.
B2B-XH-A-GU Features
XH series
B2B-XH-A-GU Applications
There are a lot of JST Sales America Inc.
B2B-XH-A-GU Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
