B08B-PASK(LF)(SN)

Share

Or copy the link below:

Mfr.Part #
B08B-PASK(LF)(SN)
Manufacturer
JST
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 8POS 2MM
Stock
5,789
In Stock :
5,789

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
JST
Product Category :
Headers, Male Pins
Number of Positions Loaded :
All
Factory Lead Time :
16 Weeks
Material Flammability Rating :
UL94 V-0
Housing Material :
Nylon
Published :
2005
Pbfree Code :
yes
Height :
7.7mm
Overall Contact Length :
0.319 8.10mm
DIN Conformance :
No
Shrouding :
Shrouded - 4 Wall
Housing Color :
White
Mounting Type :
Through Hole
Contact Length - Post :
0.118 3.00mm
Number of Rows :
1
Mount :
Through Hole
Number of Contacts :
8
Option :
GENERAL PURPOSE
Operating Temperature :
-25°C~85°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Insulation Color :
Natural
Filter Feature :
No
UL Flammability Code :
94V-0
JESD-609 Code :
e3
Contact Type :
Male Pin
Insulation Material :
Polybutylene Terephthalate (PBT), Glass Filled
Connector Type :
Header
Terminal Pitch :
2mm
Additional Feature :
SHROUDED, TOP ENTRY
Contact Finish - Mating :
Tin
Series :
PA
Pitch - Mating :
0.079 2.00mm
Contact Shape :
Square
Style :
Board to Cable/Wire
Stack Height (Mating) :
9.9mm 14.7mm 14.9mm
Width :
5.3mm
ECCN Code :
EAR99
Termination :
Kinked Pin, Solder
Fastening Type :
Locking Ramp
Current Rating (Amps) :
3A
IEC Conformance :
No
Mixed Contacts :
No
Length :
18mm
Lead Free :
Lead Free
Packaging :
Bulk
RoHS Status :
RoHS Compliant
Contact Length - Mating :
0.126 3.20mm
MIL Conformance :
No
Voltage - Rated :
250V
Insulation Height :
0.303 7.70mm
Contact Material :
COPPER ALLOY
Introducing Headers, Male Pins JST B08B-PASK(LF)(SN) from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-25°C~85°C, B08B-PASK(LF)(SN) pinout, B08B-PASK(LF)(SN) datasheet PDF, B08B-PASK(LF)(SN) amp .Beyond Headers, Male Pins JST B08B-PASK(LF)(SN) ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

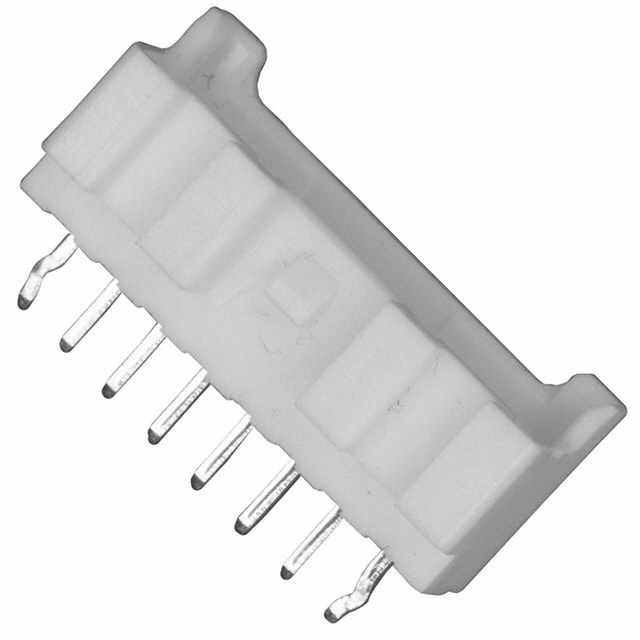

JST B08B-PASK(LF)(SN)


PA Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.303 7.70mm Height

B08B-PASK(LF)(SN) Overview


It comes in a Header package.Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the PA Series.As well as SHROUDED, TOP ENTRY, to name a few.This part is mounted by Through Hole. -25°C~85°C Operating Temperature is the default.

B08B-PASK(LF)(SN) Features


PA series


B08B-PASK(LF)(SN) Applications


There are a lot of JST Sales America Inc.
B08B-PASK(LF)(SN) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
