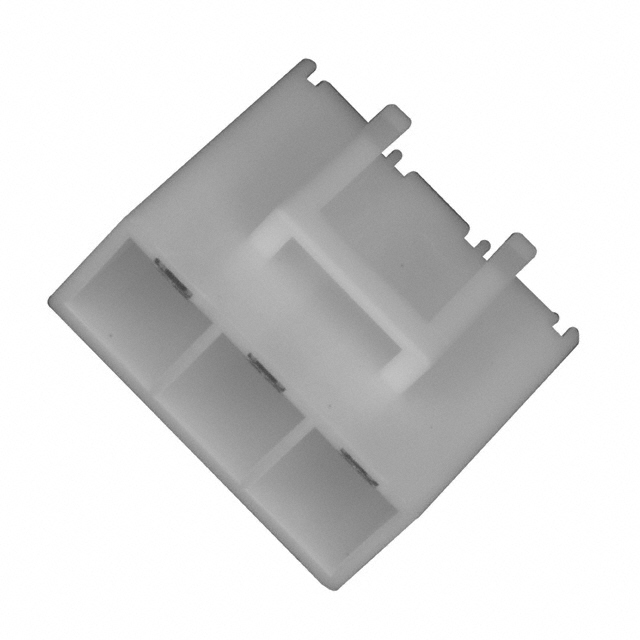

B03P-VL

Manufacturer :

JST

Product Category :

Headers, Male Pins

Insulation Resistance :

1GOhm

Contact Type :

Male Pin

Contact Resistance :

10MOhm

Contact Finish - Mating :

Tin

REACH SVHC :

No SVHC

Housing Material :

Nylon

Gender :

Male

Housing Color :

White

Pbfree Code :

yes

DIN Conformance :

No

JESD-609 Code :

e3

ECCN Code :

EAR99

Length :

19.6mm

Mount :

Through Hole

Mounting Type :

Through Hole

Height :

16.4mm

Pitch - Mating :

0.244 6.20mm

Style :

Board to Cable/Wire

Empty Shell :

No

Voltage - Rated AC :

600V

Voltage - Rated DC :

600V

Insulation Height :

0.646 16.40mm

Operating Temperature :

-25°C~90°C

MIL Conformance :

No

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Max Current Rating :

20A

Contact Shape :

Square

Filter Feature :

No

Current Rating :

20A

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Pitch :

6.2mm

Packaging :

Bulk

Lead Free :

Lead Free

Color :

Natural, White

Contact Current Rating :

20A

Shell Material :

POLYAMIDE66

Insulation Color :

Natural

Depth :

14.2mm

Orientation :

Straight

Shrouding :

Shrouded - 4 Wall

Width :

11.2mm

Max Voltage Rating (AC) :

600V

Series :

VL

RoHS Status :

RoHS Compliant

Contact Material :

COPPER ALLOY

Number of Positions Loaded :

All

Published :

2002

Factory Lead Time :

18 Weeks

UL Flammability Code :

94V-0

Insulation Material :

Polyamide (PA66), Nylon 6/6

Stack Height (Mating) :

29.2mm

Fastening Type :

Latch Holder

Connector Type :

Header

IEC Conformance :

No

Contact Length - Post :

0.142 3.60mm

Termination :

Solder

Number of Positions :

3
