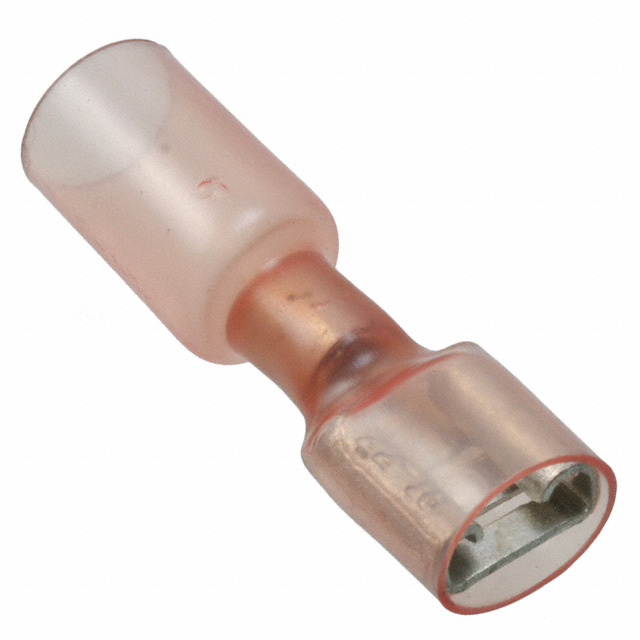

B-106-3631
Or copy the link below:
- Mfr.Part #
- B-106-3631
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 18-22AWG 0.250
- Stock
- 4,244
- In Stock ：
- 4,244
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Lead Free :
- Not Applicable
- RoHS Status :
- RoHS Compliant
- Wire Gauge :
- 18-22 AWG
- ECCN Code :
- EAR99
- REACH SVHC :
- Unknown
- Length :
- 29.972mm
- HTS Code :
- 8536.90.40.00
- Insulation Material :
- Polyamide
- Gender :
- FEMALE
- Color :
- Red
- ELV :
- Compliant
- Terminal Type :
- Standard
- Orientation :
- Straight
- Max Operating Temperature :
- 125°C
- Length - Overall :
- 1.180 29.98mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 6.35mm
- Tab Thickness :
- 810μm
- Insulation :
- Fully Insulated Heat Shrink
- Mounting Type :
- Free Hanging (In-Line)
- Contact Plating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Material :
- Brass
- Mating Tab Width :
- 6.35mm
- Factory Lead Time :
- 5 Weeks
- Published :
- 1998
- Wire/Cable Gauge :
- 18 AWG
- Insulated Wire Support :
- No
- Series :
- Dura-Seal
- Width - Tab :
- 0.250 6.35mm
- Packaging :
- Bulk
- Insulation Diameter :
- 4.064 mm
- Min Operating Temperature :
- -55°C
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Wire Gauge (Max) :
- 22 AWG
- Termination :
- Crimp
- Mount :
- Free Hanging
- Wire Gauge (Min) :
- 18 AWG
- Datasheets
- B-106-3631
