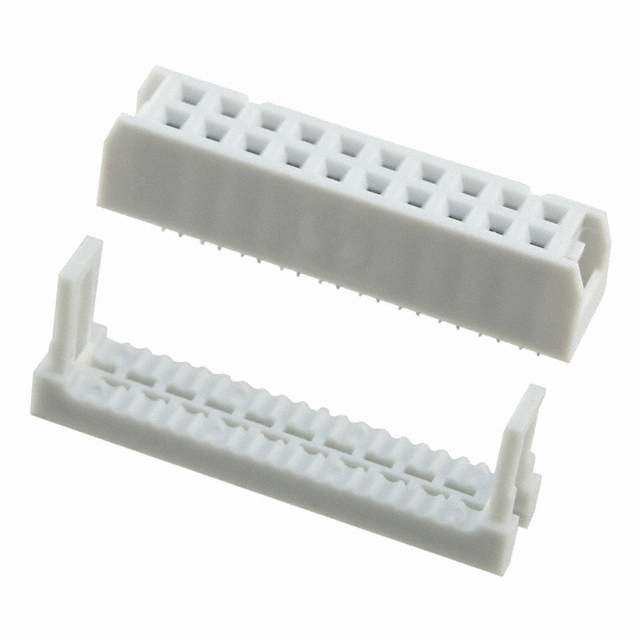

AWP20-8540-T-R
Or copy the link below:
- Mfr.Part #
- AWP20-8540-T-R
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 20POS IDC TIN
- Stock
- 33,824
- In Stock ：
- 33,824
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Free Hanging, Panel Mount
- Housing Color :
- Grey
- Number of Positions :
- 20
- Reference Standard :
- UL
- RoHS Status :
- RoHS Compliant
- Cable Termination :
- IDC
- Contact Design :
- PREASSEM CONN
- Rated Current (Signal) :
- 1A
- Contact Type :
- Female Socket
- Operating Temperature (Min) :
- -40°C
- Contact Resistance :
- 30mOhm
- Pbfree Code :
- yes
- Contact Finish :
- Tin
- Lead Free :
- Lead Free
- Width :
- 7mm
- Operating Temperature (Max) :
- 105°C
- Total Number of Contacts :
- 20
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- POLARIZED HOUSING
- Published :
- 2006
- Packaging :
- Tray
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Material :
- Brass
- Pitch :
- 0.100 2.54mm
- Mount :
- Free Hanging
- Row Spacing :
- 0.100 (2.54mm)
- Connector Type :
- Socket
- Feature :
- Feed Through
- Termination Type :
- IDC
- Housing Material :
- Plastic
- Wire Type :
- Ribbon Cable
- Wire/Cable Type :
- Ribbon
- Insulation Resistance :
- 3000000000Ohm
- Body/Shell Style :
- Receptacle
- Mounting Type :
- Free Hanging (In-Line)
- Reliability :
- COMMERCIAL
- Height :
- 7mm
- Color :
- Gray
- Length :
- 30.4mm
- Datasheets
- AWP20-8540-T-R
AWP20-8540-T-R Documents
AWP20-8540-T-R datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Assmann WSW Components stock available at Xinshop
