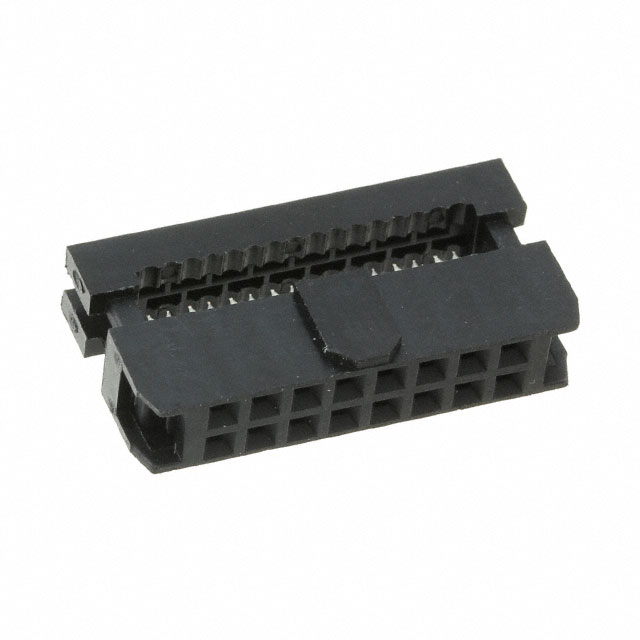

AWP2 16-7240

Share

Or copy the link below:

Mfr.Part #
AWP2 16-7240
Manufacturer
ASSMANN WSW Components
Package / Case
Datasheet
Download
Description
CONN SOCKET 16POS IDC GOLD
Stock
161
In Stock :
161

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ASSMANN WSW Components
Product Category :
Free Hanging, Panel Mount
Published :
2010
Feature :
Feed Through
Contact Type :
Female Socket
Connector Type :
Socket
Reliability :
COMMERCIAL
Mounting Option 1 :
GUIDE SLOT
Contact Material :
Brass
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Rated Current (Signal) :
1A
Wire Type :
Ribbon Cable
Pitch :
0.079 2.00mm
Reference Standard :
UL,VDE
Number of Positions :
16
Cable Termination :
IDC
Body Length or Diameter :
0.835 inch
Operating Temperature (Min) :
-40°C
Row Spacing :
0.079 (2.00mm)
Mounting Type :
Free Hanging (In-Line)
Number of Rows :
2
Operating Temperature (Max) :
105°C
Dielectric Withstanding Voltage :
500VAC V
Polarization Key :
POLARIZED HOUSING
Body/Shell Style :
PLUG
Termination Type :
IDC
Total Number of Contacts :
16
Packaging :
Tray
Contact Resistance :
15mOhm
Additional Feature :
NONE
Color :
Black
Mounting Option 2 :
LOCKING
Contact Design :
PREASSEM CONN
Contact Finish :
Gold
Insulation Resistance :
1000000000Ohm
Factory Lead Time :
23 Weeks
Contact Finish Thickness :
Flash
RoHS Status :
ROHS3 Compliant
Insulation Material :
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Introducing Free Hanging, Panel Mount ASSMANN WSW Components AWP2 16-7240 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), AWP2 16-7240 pinout, AWP2 16-7240 datasheet PDF, AWP2 16-7240 amp .Beyond Free Hanging, Panel Mount ASSMANN WSW Components AWP2 16-7240 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

ASSMANN WSW Components AWP2 16-7240


AWP2 16-7240 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Assmann WSW Components stock available at Xinshop
