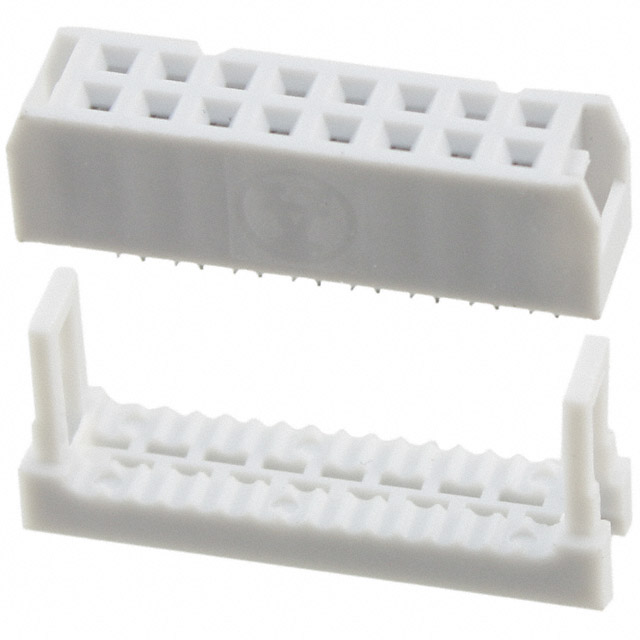

    Images are for reference only.

    Delivery：

    Payment：

    AWP16-8540-T-R

    Share

    Or copy the link below:

    Mfr.Part #
    AWP16-8540-T-R
    Manufacturer
    ASSMANN WSW Components
    Package / Case
    Datasheet
    Download
    Description
    CONN SOCKET 16POS IDC TIN
    Stock
    10,962
    In Stock ：
    10,962

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    ASSMANN WSW Components
    Product Category :
    Free Hanging, Panel Mount
    Packaging :
    Tray
    Max Current Rating :
    1A
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Reference Standard :
    UL
    Lead Free :
    Lead Free
    Contact Material :
    Brass
    Min Operating Temperature :
    -55°C
    Color :
    Gray
    Connector Type :
    Socket
    Feature :
    Feed Through
    Row Spacing :
    0.100 (2.54mm)
    Mounting Type :
    Free Hanging (In-Line)
    Contact Design :
    PREASSEM CONN
    Dielectric Withstanding Voltage :
    500VAC V
    Housing Color :
    Grey
    Width :
    7mm
    Contact Resistance :
    30mOhm
    Cable Termination :
    IDC
    Number of Positions :
    16
    Reliability :
    COMMERCIAL
    Height :
    7mm
    Housing Material :
    Plastic
    Orientation :
    RIGHT ANGLE
    Rated Current (Signal) :
    1A
    Pitch :
    0.100 2.54mm
    Termination :
    IDT
    Pbfree Code :
    yes
    Length :
    25.3mm
    Body/Shell Style :
    PLUG
    Published :
    2011
    Wire Type :
    Ribbon Cable
    Number of Rows :
    2
    Body Depth :
    0.413 inch
    RoHS Status :
    RoHS Compliant
    Contact Type :
    Female Socket
    Max Operating Temperature :
    155°C
    Contact Finish :
    Tin
    Total Number of Contacts :
    16
    Polarization Key :
    CENTER
    Insulation Resistance :
    3000000000Ohm
    Mount :
    CABLE
    Datasheets
    AWP16-8540-T-R
    Introducing Free Hanging, Panel Mount ASSMANN WSW Components AWP16-8540-T-R from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), AWP16-8540-T-R pinout, AWP16-8540-T-R datasheet PDF, AWP16-8540-T-R amp .Beyond Free Hanging, Panel Mount ASSMANN WSW Components AWP16-8540-T-R ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

    ASSMANN WSW Components AWP16-8540-T-R


    AWP16-8540-T-R datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Assmann WSW Components stock available at Xinshop
