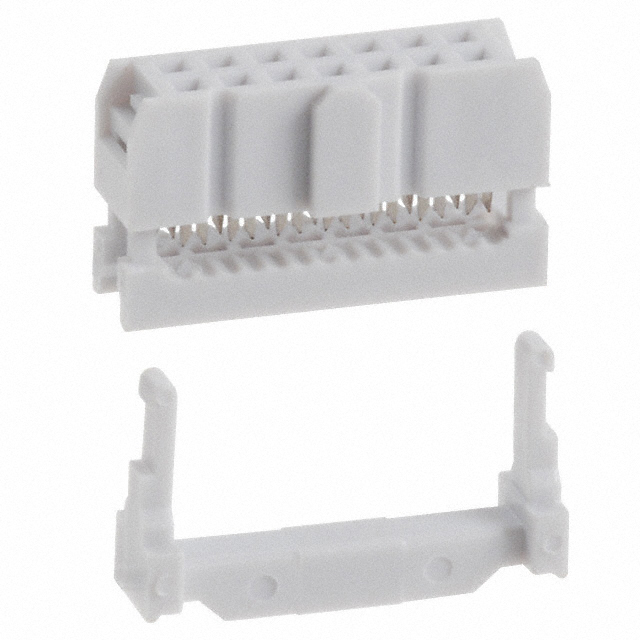

AWP14-7241-T-R
Or copy the link below:
- Mfr.Part #
- AWP14-7241-T-R
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 14POS IDC GOLD
- Stock
- 17,289
- In Stock ：
- 17,289
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Free Hanging, Panel Mount
- Pitch :
- 0.100 2.54mm
- Housing Material :
- Plastic
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness :
- Flash
- Housing Color :
- Grey
- Length :
- 22.8mm
- Total Number of Contacts :
- 14
- Wire Type :
- Ribbon Cable
- Lead Free :
- Lead Free
- Number of Rows :
- 2
- Contact Finish :
- Gold
- Mount :
- Cable, Free Hanging
- Number of Positions :
- 14
- Rated Current (Signal) :
- 1A
- Wire/Cable Type :
- Ribbon
- Feature :
- Feed Through, Polarizing Key, Strain Relief
- Contact Material :
- Brass
- Max Current Rating :
- 1A
- Color :
- Gray
- Reliability :
- COMMERCIAL
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 2010
- Orientation :
- RIGHT ANGLE
- Contact Type :
- Female Socket
- Max Voltage Rating (AC) :
- 250V
- Termination :
- IDT
- Height :
- 7mm
- Connector Type :
- Socket
- Polarization Key :
- POLARIZED HOUSING
- Packaging :
- Tray
- Body/Shell Style :
- PLUG
- Width :
- 7mm
- Terminal Pitch :
- 2.54mm
- Max Operating Temperature :
- 105°C
- Contact Resistance :
- 30mOhm
- Row Spacing :
- 0.100 (2.54mm)
- Min Operating Temperature :
- -55°C
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Resistance :
- 1000000000Ohm
- Cable Termination :
- IDC
- Contact Design :
- PREASSEM CONN
- Reference Standard :
- UL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- AWP14-7241-T-R
