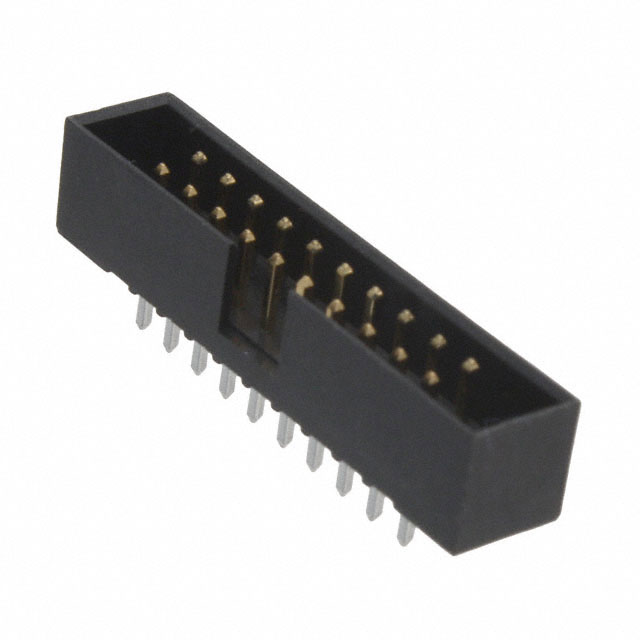

AWHW2 20G-0202
Or copy the link below:
- Mfr.Part #
- AWHW2 20G-0202
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2MM
- Stock
- 33,317
- In Stock ：
- 33,317
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Number of Positions :
- 20
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- Flash
- Factory Lead Time :
- 23 Weeks
- Insulation Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Mating Contact Pitch :
- 0.079 inch
- Pitch - Mating :
- 0.079 2.00mm
- Reliability :
- COMMERCIAL
- Plating Thickness :
- 30μin
- Contact Length - Mating :
- 0.157 4.00mm
- Length - Termination :
- 0.11 inch
- Fastening Type :
- Push-Pull
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Number Of PCB Rows :
- 2
- Connector Type :
- Header
- Insulation Material :
- Polyamide (PA9T), Nylon 9T, Glass Filled
- Operating Temperature :
- -40°C~105°C
- Body Length or Diameter :
- 1.075 inch
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 500VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Current Rating (Amps) :
- 1.5A
- Contact Length - Post :
- 0.110 2.79mm
- Additional Feature :
- RoHS Compliant
- Number of Conductors :
- ONE
- Style :
- Board to Cable/Wire
- Mounting Option 1 :
- LOCKING
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.226 5.74mm
- Polarization Key :
- POLARIZED HOUSING
- ECCN Code :
- EAR99
- Contact Shape :
- Square
- HTS Code :
- 8536.69.40.40
- Packaging :
- Tray
- Contact Material :
- Brass
- Feature :
- Keying Slot
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Mating :
- Gold
- JESD-609 Code :
- e4
- Datasheets
- AWHW2 20G-0202
AWHW2 20G-0202 Documents
2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA9T), Nylon 9T, Glass Filled 20-Position Board to Cable/Wire 0.226 5.74mm Height
AWHW2 20G-0202 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.Among other features are ROHS COMPLIANT, to name only a few.It is more powerful in many ways due to its Keying Slot feature.It operates at an operating temperature of -40°C~105°C.
AWHW2 20G-0202 Features
AWHW2 20G-0202 Applications
There are a lot of Assmann WSW Components
AWHW2 20G-0202 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
