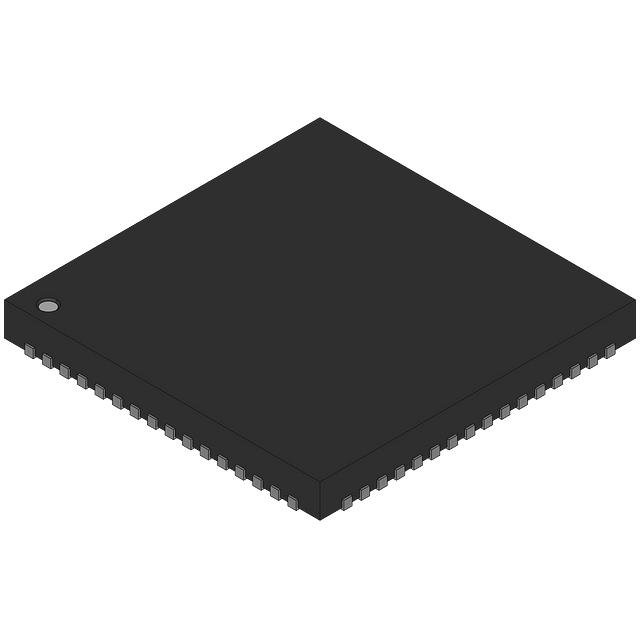

ATMEGA169PA-MCH

Manufacturer :

Atmel (Microchip Technology)

Product Category :

Microcontrollers

Manufacturer :

Microchip

Contact Plating :

Tin

Supply Current-Max :

9.5 mA

Supply Voltage-Min (Vsup) :

4.5V

Number of Pins :

64

Connectivity :

SPI, UART/USART, USI

Bit Size :

8

Width :

7 mm

Interface :

SPI, UART, USART

Length :

7mm

Oscillator Type :

Internal

RAM (bytes) :

1024

Published :

2007

Voltage - Supply (Vcc/Vdd) :

1.8V~5.5V

Data Converters :

A/D 8x10b

Number of I/O :

54

Pbfree Code :

yes

Watchdog Timer :

yes

Peripherals :

Brown-out Detect/Reset, LCD, POR, PWM, WDT

Frequency :

16MHz

Factory Lead Time :

4 Weeks

Number of I/O Lines :

54

Height Seated (Max) :

1mm

DAC Channels :

No

Number of Terminations :

64

ROM (words) :

8192

Core Processor :

AVR

Supply Voltage-Max (Vsup) :

5.5V

Tradename :

AVR

Qualification Status :

Not Qualified

RAM Size :

1K x 8

Supplier Device Package :

64-QFN (7x7)

Series :

AVR® ATmega

Speed :

16MHz

Interfaces :

SPI/USART

Product Status :

Active

Number of I/Os :

54 I/O

Number of Timers/Counters :

3

Terminal Pitch :

0.65mm

Power Supplies :

2/5V

JESD-30 Code :

S-PQCC-N64

Package / Case :

64-VQFN Dual Rows, Exposed Pad

PWM Channels :

yes

Core Size :

8-Bit

Program Memory Size :

16KB 8K x 16

Additional Feature :

ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Minimum Operating Temperature :

- 40 C

Product Category :

8-bit Microcontrollers - MCU

Brand :

Microchip Technology

Base Part Number :

ATMEGA169PA

Has ADC :

yes

Seated Height-Max :

1 mm

Packaging :

Tray

CPU Family :

AVR RISC

ROM Programmability :

Flash

Surface Mount :

yes

RoHS :

Details

Data Converter :

A/D 8x10b

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Data Bus Width :

8B

Program Memory Type :

Flash

Mount :

Surface Mount

Number of Terminals :

64

Reach Compliance Code :

Compliant

Temperature Grade :

Industrial

Product :

MCU

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount

Terminal Position :

QUAD

Supply Voltage :

5V

Memory Size :

16kB

Device Core :

AVR

Base Product Number :

ATMEGA169

Operating Temperature :

-40°C~85°C TA

Mounting Style :

SMD/SMT

Terminal Form :

NO LEAD

Package :

Tray

Package Shape :

Square

Product Type :

8-bit Microcontrollers - MCU

Maximum Operating Temperature :

+ 85 C

DMA Channels :

No

EEPROM Size :

512 x 8
