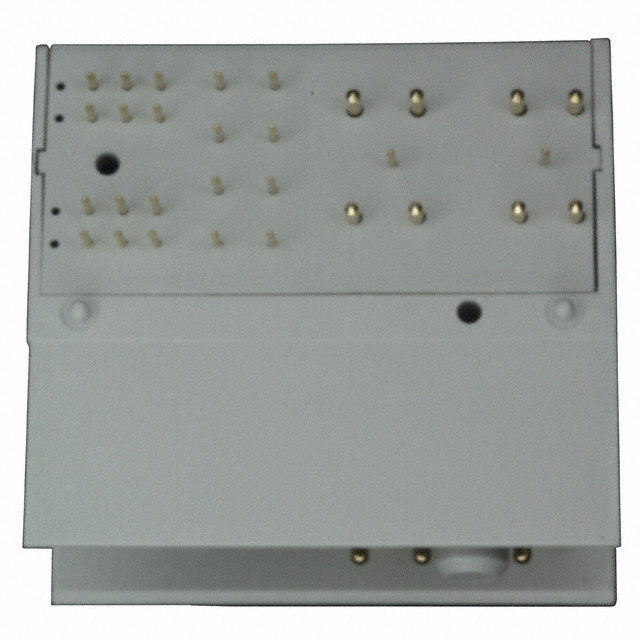

ATC30W08MARCS5X
Or copy the link below:
- Mfr.Part #
- ATC30W08MARCS5X
- Manufacturer
- CONEC
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG ATCA 34POS PCB
- Stock
- 24,227
- In Stock ：
- 24,227
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CONEC
- Product Category :
- Specialized
- Connector Style :
- AdvancedTCA®
- Total Number of Contacts :
- 30
- Body Depth :
- 1.626 inch
- Contact Arrangement :
- S22P8
- Contact Style :
- RND PIN-SKT
- Contact Layout, Typical :
- 26 Signal, 8 Power
- Termination :
- Solder
- Length - Termination :
- 0.106 inch
- Connector Type :
- Plug, Male Pins
- Operating Temperature :
- -55°C~125°C
- Gender :
- Male
- Contact Finish Thickness :
- 31.5μin 0.80μm
- Mount :
- Through Hole
- Rated Current (Signal) :
- 2A
- Contact Finish :
- Gold
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Connector Usage :
- Front Board
- Published :
- 2006
- Packaging :
- Tray
- Color :
- Gray
- Reference Standard :
- UL
- Insulation Resistance :
- 5000000000Ohm
- Durability :
- 250 Cycles
- Mounting Type :
- Through Hole, Right Angle
- Number of Positions Loaded :
- 30
- Number of Conductors :
- ONE
- Contact Material :
- COPPER ALLOY
- Current Rating :
- 30A
- Body Breadth :
- 0.823 inch
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- yes
- Feature :
- Mating Guide
- Body Length or Diameter :
- 1.815 inch
- Number of Positions :
- 34
- Housing Material :
- Plastic
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- ATC30W08MARCS5X
Plug, Male Pins Solder Gold Gray 31.5μin 0.80μm 34 Positions -55°C~125°C Tray Through Hole, Right Angle
ATC30W08MARCS5X Overview
This product is packaged in a Plug, Male Pins box.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.In many ways, Mating Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
ATC30W08MARCS5X Features
ATC30W08MARCS5X Applications
There are a lot of Conec
ATC30W08MARCS5X Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
