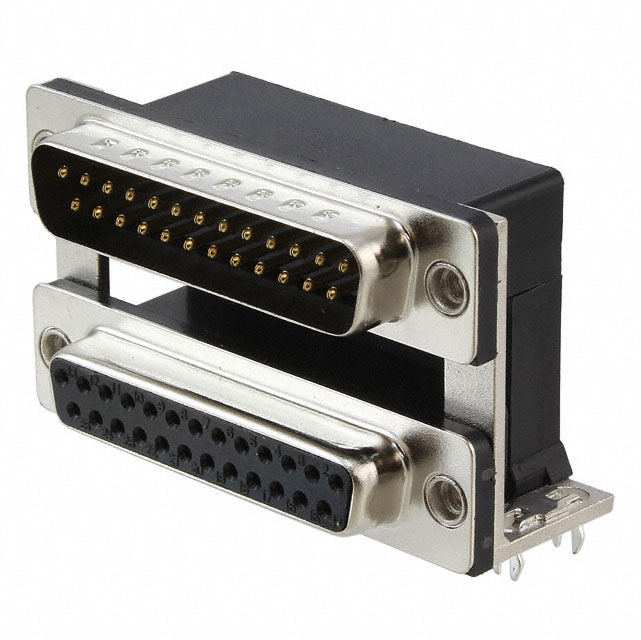

ASUB-277-25TP24
Or copy the link below:
- Mfr.Part #
- ASUB-277-25TP24
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG/RCPT 25P R/A SLD
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- D-Sub Connector Assemblies
- Mounting Type :
- Through Hole, Right Angle
- Color :
- Black
- Mount :
- Through Hole
- Number of Positions :
- 25, 25
- Number of Rows :
- 2, 2
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- ROHS3 Compliant
- Contact Finish :
- Gold
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Published :
- 2014
- Factory Lead Time :
- 23 Weeks
- Operating Temperature :
- -55°C~105°C
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Plug, Male Pins; Receptacle, Female Sockets
- Voltage - Rated :
- 250V
- Contact Type :
- Signal
- Flange Feature :
- Housing/Shell (4-40)
- Housing Material :
- PBT
- Shell Size, Connector Layout :
- 3 DB B ; 3 DB B
- Connector Style :
- D-Sub - Stacked
- Packaging :
- Tray
- Number of Pins :
- 25
- Current Rating :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material, Finish :
- Steel, Tin Plated
- Contact Finish Thickness :
- Flash
- Feature :
- Board Lock, Grounding Indents
- Datasheets
- ASUB-277-25TP24
ASUB-277-25TP24 Documents
D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets 25, 25-Position Signal Solder 3 DB B ; 3 DB B Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
ASUB-277-25TP24 Overview
The connector type Plug, Male Pins; Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.The device is equipped with 25 pins.Its Board Lock, Grounding Indents feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -55°C~105°C Operating Temperature.
ASUB-277-25TP24 Features
ASUB-277-25TP24 Applications
There are a lot of Assmann WSW Components
ASUB-277-25TP24 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
