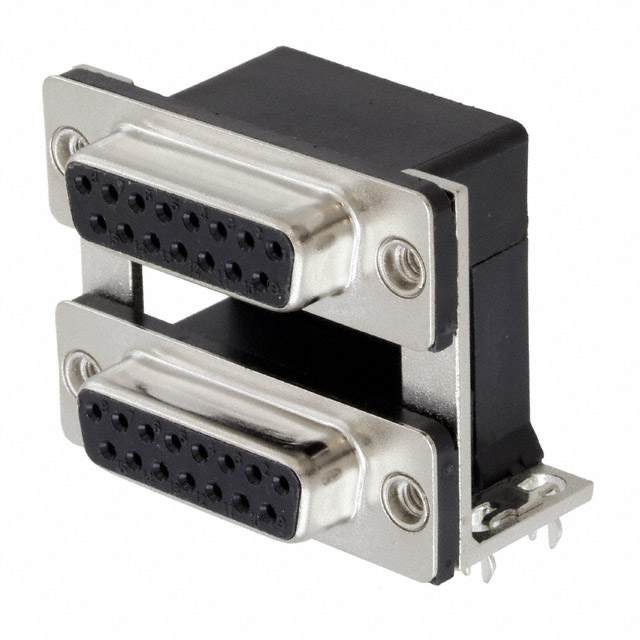

ASUB-277-15TP26
Or copy the link below:
- Mfr.Part #
- ASUB-277-15TP26
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS R/A SLDR
- Stock
- 204
- In Stock ：
- 204
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- D-Sub Connector Assemblies
- MIL Conformance :
- No
- Shell Size, Connector Layout :
- 2 DA A ; 2 DA A
- Shell Finish :
- Tin
- Empty Shell :
- No
- Number of Pins :
- 15
- Shell Material, Finish :
- Steel, Tin Plated
- JESD-609 Code :
- e3
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 15, 15
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -55°C~105°C
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Signal
- Current Rating :
- 3A
- Connector Style :
- D-Sub - Stacked
- Mount :
- Through Hole
- Housing Material :
- PBT
- Pbfree Code :
- yes
- Contact Finish Thickness :
- Flash
- Material Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Contact Finish :
- Gold
- Connector Type :
- Receptacle, Female Sockets
- Mixed Contacts :
- No
- Published :
- 2014
- DIN Conformance :
- No
- IEC Conformance :
- No
- Flange Feature :
- Housing/Shell (4-40)
- Contact Gender :
- FEMALE AND FEMALE
- Feature :
- Board Lock
- Voltage - Rated :
- 250V
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Packaging :
- Tray
- Filter Feature :
- No
- Termination :
- Solder
- Number of Rows :
- 2, 2
- Total Number of Contacts :
- 15
- Factory Lead Time :
- 23 Weeks
- Datasheets
- ASUB-277-15TP26
ASUB-277-15TP26 Documents
D-Sub - Stacked Receptacle, Female Sockets 15, 15-Position Signal Solder 2 DA A ; 2 DA A Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
ASUB-277-15TP26 Overview
This product is packaged in a Receptacle, Female Sockets cartonThrough Hole, Right Angle is the mounting type of the device.We pack the product in a Tray case.Pins 15 are present on the device.A number of advantages can be derived from its Board Lock feature.This part is mounted by Through Hole. -55°C~105°C Operating Temperature is the default.
ASUB-277-15TP26 Features
ASUB-277-15TP26 Applications
There are a lot of Assmann WSW Components
ASUB-277-15TP26 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
