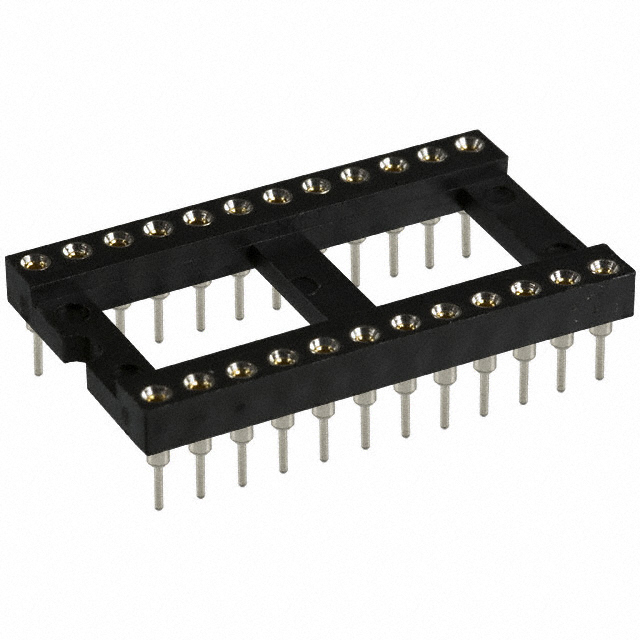

AR 24-HZL-TT
Or copy the link below:
- Mfr.Part #
- AR 24-HZL-TT
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 24POS TIN
- Stock
- 14,864
- In Stock ：
- 14,864
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- IC Sockets
- Feature :
- Open Frame
- Material Flammability Rating :
- UL94 V-0
- Body Length or Diameter :
- 1.2 inch
- Insulation Resistance :
- 10000000000Ohm
- Mating Contact Pitch :
- 0.1 inch
- Contact Style :
- RND PIN-SKT
- PCB Contact Pattern :
- RECTANGULAR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Number of Contacts :
- 24
- HTS Code :
- 8536.69.40.40
- ECCN Code :
- EAR99
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 23 Weeks
- Contact Finish Thickness - Post :
- 200.0μin 5.08μm
- Additional Feature :
- STANDARD: UL 94V-0
- Number of Positions or Pins (Grid) :
- 24 (2 x 12)
- Termination :
- Solder
- Current Rating (Amps) :
- 3A
- Type :
- DIP, 0.6 (15.24mm) Row Spacing
- Contact Resistance :
- 4mOhm
- Housing Material :
- Thermoplastic, Polyester
- Contact Material - Mating :
- BERYLLIUM COPPER
- RoHS Status :
- ROHS3 Compliant
- Pitch - Post :
- 0.100 2.54mm
- Published :
- 2003
- Body Breadth :
- 0.7 inch
- PCB Contact Row Spacing :
- 0.6 mm
- Contact Material - Post :
- BERYLLIUM COPPER
- JESD-609 Code :
- e3
- Packaging :
- Tube
- Terminal Pitch :
- 2.54mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Tin
- Datasheets
- AR 24-HZL-TT
AR 24-HZL-TT Documents
AR 24 HZL-TT datasheet pdf and Sockets for ICs, Transistors product details from Assmann WSW Components stock available at Xinshop
