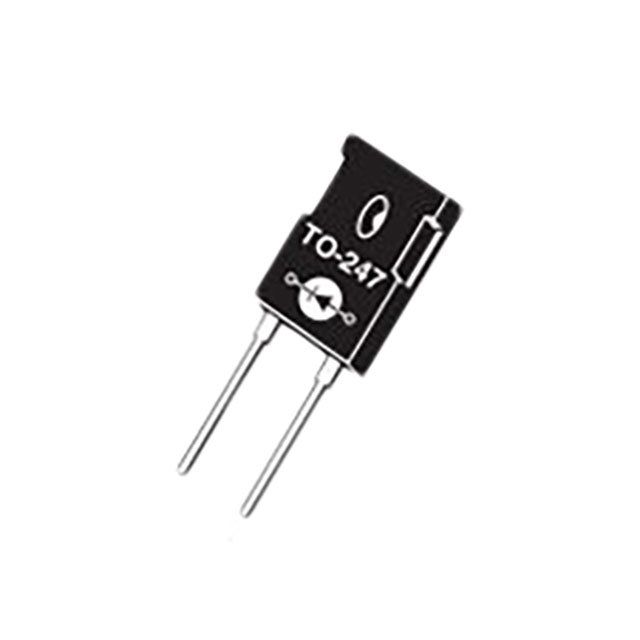

APT60S20BG

Manufacturer :

Microchip Technology

Product Category :

Diodes - Rectifiers - Single

Application :

HIGH VOLTAGE ULTRA FAST SOFT RECOVERY

Max Operating Temperature :

150°C

Max Reverse Voltage (DC) :

200V

Average Rectified Current :

75A

HTS Code :

8541.10.00.80

Diode Type :

Schottky

Weight :

6.500007g

Min Operating Temperature :

-55°C

Forward Voltage :

830mV

Reverse Voltage (DC) :

200V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Surge Current :

600A

Length :

21.46mm

Number of Elements :

1

Lifecycle Status :

IN PRODUCTION (Last Updated: 3 weeks ago)

JESD-609 Code :

e1

Current Rating :

75A

Packaging :

Tube

RoHS Status :

RoHS Compliant

Forward Current :

75A

Current - Reverse Leakage @ Vr :

1mA @ 200V

Radiation Hardening :

No

Element Configuration :

Single

Factory Lead Time :

25 Weeks

Number of Terminations :

2

Mounting Type :

Through Hole

Pbfree Code :

yes

Published :

1997

Number of Phases :

1

Operating Temperature - Junction :

-55°C~150°C

Output Current :

75A

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Case Connection :

CATHODE

Voltage - Forward (Vf) (Max) @ If :

900mV @ 60A

Package / Case :

TO-247-2

Voltage - Rated DC :

200V

Lead Free :

Lead Free

Reverse Recovery Time :

55 ns

Peak Reverse Current :

1mA

Width :

16.26mm

Polarity :

Standard

Recovery Time :

55 ns

Pin Count :

3

Max Repetitive Reverse Voltage (Vrrm) :

200V

Height :

5.31mm

Mount :

Through Hole

JESD-30 Code :

R-PSFM-T2

Peak Non-Repetitive Surge Current :

600A

Diode Element Material :

SILICON

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

ECCN Code :

EAR99
