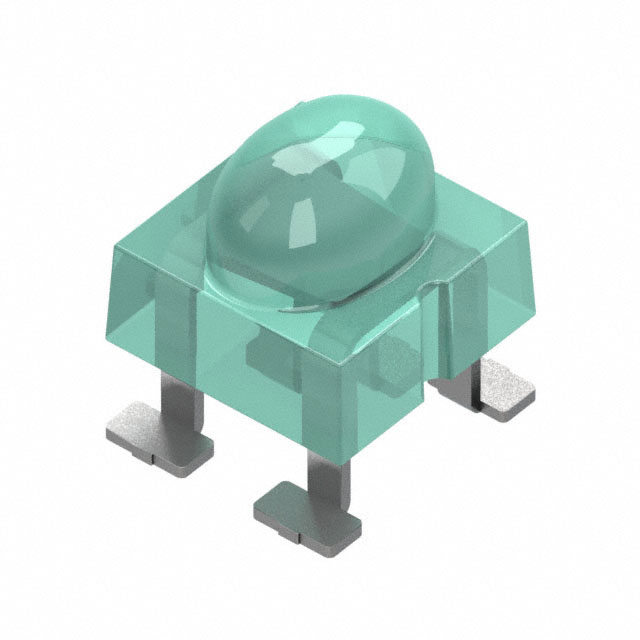

ALMD-LM36-14002

Manufacturer :

Broadcom

Product Category :

Lead Free :

Lead Free

Viewing Angle :

100°, 40°

Lens Transparency :

Diffused

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Terminal Pitch :

2.35mm

Reverse Voltage :

5V

Mount :

Surface Mount

Configuration :

Standard

Number of Pins :

4

Optoelectronic Device Type :

SINGLE COLOR LED

Mounting Type :

Surface Mount

Number of Terminations :

4

Millicandela Rating :

4475mcd

Wavelength - Peak :

516nm

Wavelength - Dominant :

525nm

Lens Style :

Oval with Domed Top

Forward Current :

20mA

Radiation Hardening :

No

Forward Voltage-Max :

3.8V

Factory Lead Time :

16 Weeks

Packaging :

Tape and Reel (TR)

Max Operating Temperature :

85°C

Published :

2010

Size / Dimension :

4.20mm Lx4.20mm W

Voltage - Forward (Vf) (Typ) :

3.2V

Terminal Finish :

Silver (Ag)

Luminous Intensity :

5.04 cd

Number of Functions :

1

Package / Case :

4-SMD, J-Lead

RoHS Status :

ROHS3 Compliant

Color :

Green

JESD-609 Code :

e4

Height :

5.7mm

Depth :

4.2mm

REACH SVHC :

No SVHC

Power Dissipation :

114mW

Number of Elements :

1

Power Rating :

114mW

ECCN Code :

EAR99

Base Part Number :

ALMD-LM36

Min Operating Temperature :

-40°C

Max Power Dissipation :

114mW
