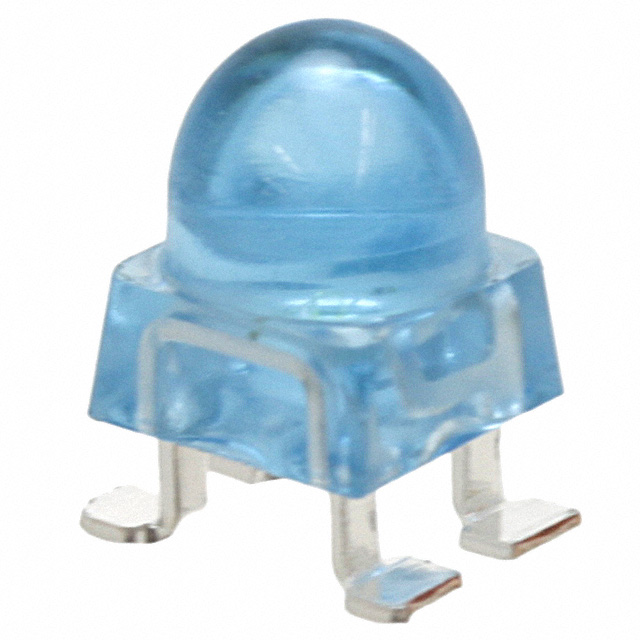

ALMD-CB3D-SU002

Manufacturer :

Broadcom

Product Category :

Configuration :

Standard

Number of Functions :

1

Factory Lead Time :

16 Weeks

Packaging :

Tape and Reel (TR)

Voltage - Forward (Vf) (Typ) :

3.2V

Viewing Angle :

30°

Max Power Dissipation :

114mW

Min Operating Temperature :

-40°C

Luminous Flux :

15 mlm

Number of Pins :

4

Millicandela Rating :

3050mcd

Height :

6.5mm

Mounting Type :

Surface Mount

Forward Current :

20mA

Package / Case :

4-SMD, Gull Wing

Forward Voltage-Max :

3.8V

REACH SVHC :

No SVHC

Optoelectronic Device Type :

SINGLE COLOR LED

Size / Dimension :

4.20mm Lx4.20mm W

Depth :

4.2mm

Power Rating :

114mW

Radiation Hardening :

No

Wavelength - Dominant :

470nm

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Mount :

Surface Mount

Published :

2011

Number of Elements :

1

Base Part Number :

ALMD-CB3D

Color :

Blue

Max Operating Temperature :

85°C

RoHS Status :

ROHS3 Compliant

Power Dissipation :

114mW

Number of Terminations :

4

Wavelength - Peak :

464nm

Lens Style :

Round with Domed Top

ECCN Code :

EAR99

Reverse Voltage :

5V

Lens Transparency :

Clear

Luminous Intensity :

4.2 cd
