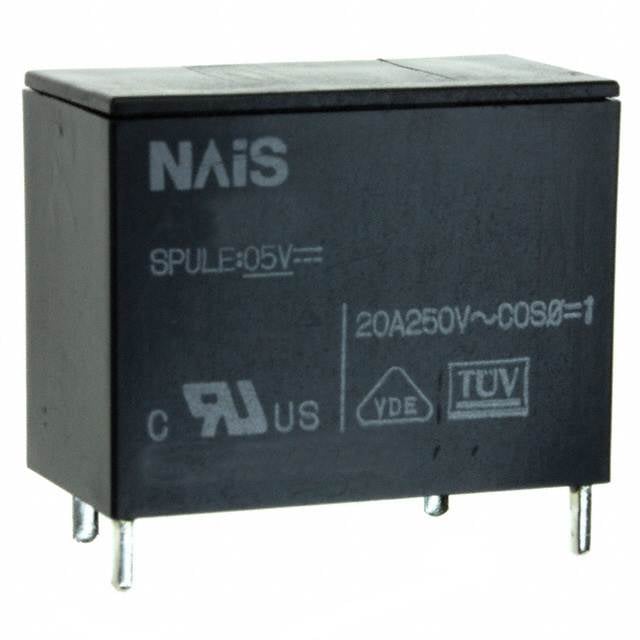

ALF1P09

Manufacturer :

Panasonic

Product Category :

Power Relays, Over 2 Amps

Reference Standard :

TUV; UL; VDE

Contact Form :

SPST-NO (1 Form A)

RoHS Status :

RoHS Compliant

Contact Rating (Current) :

20A

Max Voltage Rating (AC) :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Electrical Life :

100000 Cycle(s)

Must Release Voltage :

0.9VDC

Published :

2004

Coil Power :

900mW

Contact Material :

Silver Tin Oxide (AgSnO)

Mount :

Through Hole

Coil Current :

100mA

Series :

ALF

Packing Method :

Box

Relay Type :

GENERAL PURPOSE

Coil Type :

Non Latching

Coil/Input Supply Type :

DC

Mounting Type :

Through Hole

Operate Time :

20ms

Lead Free :

Lead Free

Body Length or Diameter :

30.1mm

Termination :

PC Pin

Number of Pins :

4

Contact/Output Supply Type :

AC

Coil Resistance :

90Ohm

Must Operate Voltage :

6.3VDC

Coil Voltage (DC) :

9V

Operating Temperature :

-40°C~60°C

Packaging :

Tube

Release Time :

15ms

Body Height :

23.3mm

Throw Configuration :

SPST

Body Breadth :

15.7 mm

Switching Voltage :

250VAC -Max

Relay Action :

Momentary

Contact (AC) Max Rating R Load :

25A@250VAC

Factory Lead Time :

20 Weeks

ECCN Code :

EAR99

Max Current Rating :

25A

Coil Voltage :

9VDC

Physical Dimension :

30.1mm x 15.7mm x 23.3mm

Termination Style :

PC Pin
