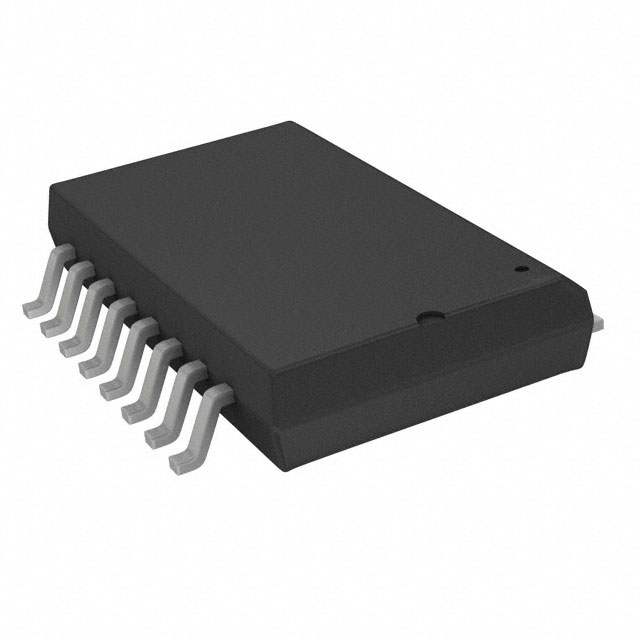

ALD500ASWCL
Or copy the link below:
- Mfr.Part #
- ALD500ASWCL
- Manufacturer
- Advanced Linear Devices, Inc.
- Package / Case
- 16-SOIC (0.295, 7.50mm Width)
- Datasheet
- Download
- Description
- IC ADC 17BIT SAR 16SOIC
- Stock
- 4,869
- In Stock ：
- 4,869
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Advanced Linear Devices, Inc.
- Product Category :
- Analog to Digital Converters (ADC)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Architecture :
- SAR
- Number of Pins :
- 16
- Voltage - Supply, Analog :
- ±5V
- Max Operating Temperature :
- 70°C
- Published :
- 1999
- Factory Lead Time :
- 8 Weeks
- Operating Supply Voltage :
- 5.5V
- Supplier Device Package :
- 16-SOIC
- RoHS Status :
- ROHS3 Compliant
- Configuration :
- ADC
- Package / Case :
- 16-SOIC (0.295, 7.50mm Width)
- Input Type :
- Differential
- Voltage - Supply, Digital :
- ±5V
- Number of Inputs :
- 1
- Number of Converters :
- 1
- Number of A/D Converters :
- 1
- Min Operating Temperature :
- 0°C
- Reference Type :
- External
- Number of Bits :
- 17
- Operating Temperature :
- 0°C~70°C
- Number of Channels :
- 1
- Packaging :
- Tube
- Datasheets
- ALD500ASWCL
Analog to Digital Converters (ADC) Advanced Linear Devices, Inc. ALD500ASWCL Overview
The ALD500ASWCL, manufactured by Advanced Linear Devices, Inc., represents a pinnacle in precision and functionality for Analog to Digital Converters (ADCs). Designed for applications demanding high accuracy and resolution, this 17-bit SAR ADC delivers exceptional performance with its state-of-the-art architecture. Its integration into a 16SOIC package allows for a compact design while maintaining a robust feature set suitable for a broad range of industrial applications. The use of the ALD500ASWCL can significantly enhance system performance by providing precise voltage to digital conversion capabilities, making it a crucial component for developers aiming to leverage advanced sensor technologies and sophisticated signal processing algorithms.
ALD500ASWCL Features
The ALD500ASWCL ADC boasts a series of features designed for high precision and ease of use. This includes a 17-bit resolution which ensures detailed and accurate data conversion, crucial for high-stakes measurements and controls. The device operates efficiently with a low-power consumption profile, making it ideal for battery-powered or energy-sensitive applications. Its single-ended input and easy interfacing with microcontrollers and other digital systems simplify integration and development processes, further enhancing its versatility and appeal to engineers and designers.
ALD500ASWCL Applications
- Precision Instrumentation: In environments where accurate data acquisition is crucial, such as in laboratory equipment or precision sensors, the ALD500ASWCL enhances measurement reliability and precision.
- Medical Devices: Used in medical diagnostic equipment, this ADC ensures accurate readings essential for patient monitoring and diagnostics, contributing to reliable health assessments and treatments.
- Industrial Automation: In automation systems, the high resolution and accuracy of the ALD500ASWCL help in precise control and monitoring of industrial processes, improving efficiency and safety.
- Energy Management: The device's low power consumption makes it suitable for use in energy management systems, where maintaining energy efficiency while ensuring system accuracy is critical.
- Data Acquisition Systems: With its high resolution, the ALD500ASWCL is perfect for data acquisition applications where detailed data collection is necessary for analysis and decision-making processes.
