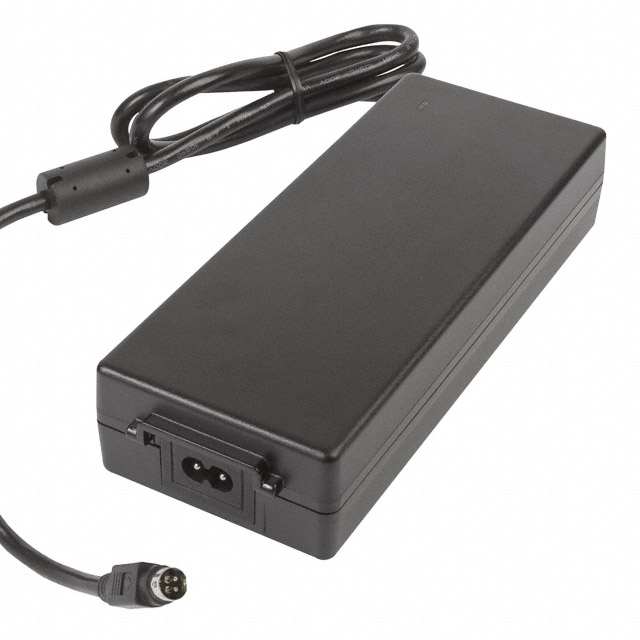

AHM150PS48C2-8

Manufacturer :

XP Power

Product Category :

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Outputs :

1

REACH SVHC :

No SVHC

Efficiency :

Level V

Weight :

1.3lbs 589.7g

Size / Dimension :

7.80Lx3.15W x 1.45 H 200.0mmx80.0mmx37.0mm

Current - Output 1 :

3.13A

Input Connector :

IEC 320-C8

Output Current :

3.13A

Max Input Voltage :

264V

Max Power Dissipation :

150W

Approval Agency :

CB, TUV, UL

Voltage - Output 1 :

48V

Applications :

ITE (Commercial), Medical

Mount :

Desktop

Output Power :

150W

Max Input Voltage (AC) :

264V

Published :

2011

Region Utilized :

International

Series :

AHM150 (150W)

Max Output Power :

150W

Input Type :

Cord (Sold Separately)

Nominal Output Voltage :

48V

Operating Temperature :

0°C~60°C

Min Input Voltage (AC) :

80V

Form :

Desktop (Class II)

Max Output Current :

3.13A

Cord Length :

35.4 0.9m

Height :

36.83mm

No Load Power Consumption :

500mW Max

Min Input Voltage :

80V

Voltage - Input :

80V~264VAC

Output Connector :

Power DIN, 4 Pin
