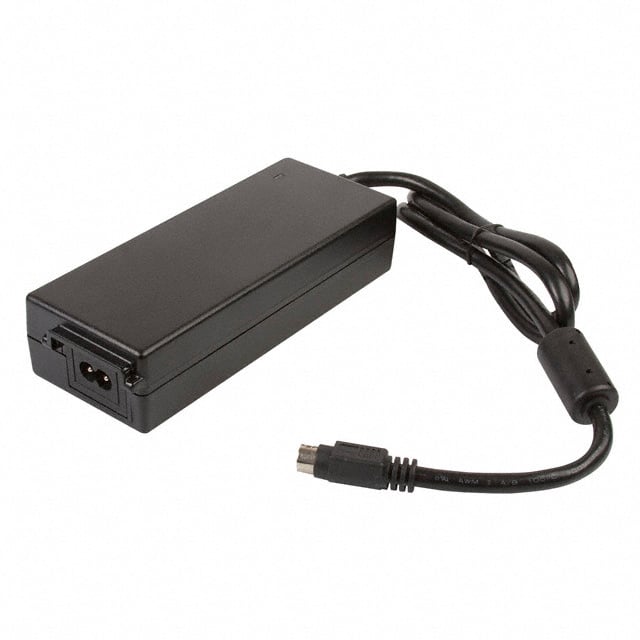

AHM100PS48C2-8

Manufacturer :

XP Power

Product Category :

Output Current :

2.08A

Applications :

ITE (Commercial), Medical

RoHS Status :

ROHS3 Compliant

Nominal Output Voltage :

48V

Voltage - Output 1 :

48V

Number of Outputs :

1

Package / Case :

100

Series :

AHM100 (100W)

Mount :

External

Operating Temperature :

0°C~60°C

Form :

Desktop (Class II)

Max Power Dissipation :

100W

Weight :

1.1lbs 499g

Output Power :

100W

Current - Output 1 :

2.08A

Input Type :

Cord (Sold Separately)

Cord Length :

35.4 0.9m

Height :

36.83mm

No Load Power Consumption :

500mW Max

REACH SVHC :

No SVHC

Published :

2011

Max Output Current :

2.08A

Moisture Sensitivity Level (MSL) :

Not Applicable

Min Input Voltage :

80V

Min Input Voltage (AC) :

80V

Voltage - Input :

80V~264VAC

Size / Dimension :

6.29Lx2.52W x 1.45 H 160.0mmx64.0mmx37.0mm

Input Connector :

IEC 320-C8

Output Connector :

Power DIN, 4 Pin

Max Input Voltage :

264V

Max Output Power :

100W

Max Input Voltage (AC) :

264V

Region Utilized :

International

Approval Agency :

CB, TUV, UL

Efficiency :

Level V
