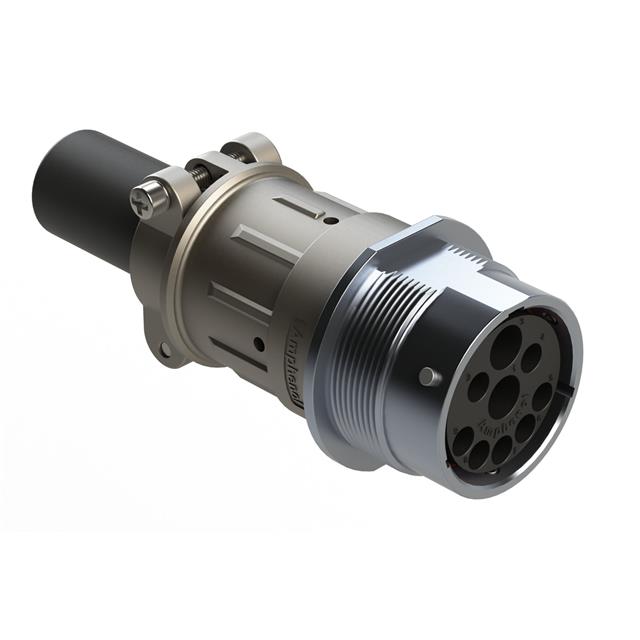

AHDBM04-24-91PR16-059
Or copy the link below:
- Mfr.Part #
- AHDBM04-24-91PR16-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- SIZE 24, 9 POSITION ISOBUS RECEP
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Shell Finish :
- Anodized
- Features :
- Backshell, Cable Clamp
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Series :
- DuraMate? AHDBM
- Housing Gender :
- Male
- Orientation :
- Keyed
- Product Category :
- Standard Circular Connector
- Accessory Type :
- -
- Manufacturer :
- Amphenol
- Contact Type :
- Crimp
- Mating Cycles :
- 100 Cycle
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Fastening Type :
- Bayonet Lock
- Product Type :
- Standard Circular Connector
- Note :
- Contacts Not Included; Jam Nut Not Included
- RoHS :
- Details
- Contact Gender :
- Pin (Male)
- Shell Size - Insert :
- 24-91
- Package :
- Box
- Connector Type :
- Receptacle Housing
- Number of Positions :
- 9
- IP Rating :
- IP69X
- Mounting Type :
- Panel Mount
- Contact Size :
- 8 (2), 12 (2), 16 (5)
- Mounting Style :
- CABLE
- Tradename :
- DuraMate
- Contact Shape :
- Circular
- Shell Material :
- Aluminum Alloy
- Subcategory :
- Circular Connectors
- Insert Material :
- Thermoplastic
- Housing Material :
- Thermoplastic (TP)
- Housing Color :
- Black
- Mounting Feature :
- Bulkhead - Front Side Nut
- Type :
- For Male Pins
- Shell Size :
- 24
- Primary Material :
- Metal
- Material Flammability Rating :
- -
- Product :
- Receptacles
- Product Status :
- Active
- Voltage Rating :
- 250 V
- Color :
- Black
- Shielding :
- Unshielded
- Shell Size, MIL :
- -
- Operating Temperature :
- -55°C ~ 125°C
- Brand :
- Amphenol SINE Systems
- Datasheets
- AHDBM04-24-91PR16-059
Receptacle Housing Aluminum Alloy Panel Mount 9 Positions Anodized Keyed Bayonet Lock
AHDBM04-24-91PR16-059 Overview
Currently, it is packaged in Receptacle Housing.The mounting type of the device is Panel Mount.A product of the DuraMate? AHDBM Series, it belongs to the range of products of that series.-55°C ~ 125°C Operating Temperature is the default operating temperature for the device.
AHDBM04-24-91PR16-059 Features
DuraMate? AHDBM series
AHDBM04-24-91PR16-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDBM04-24-91PR16-059 Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
