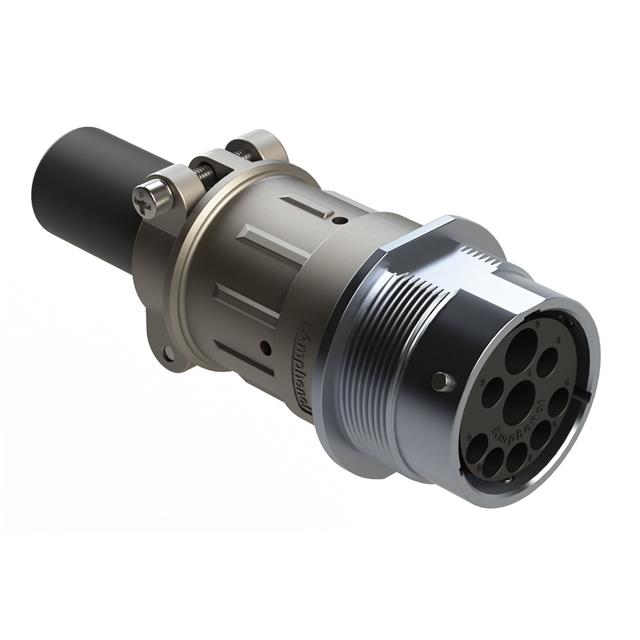

AHDBM04-24-91PN-059
Or copy the link below:
- Mfr.Part #
- AHDBM04-24-91PN-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- SIZE 24, 9 POSITION ISOBUSRECEPT
- Stock
- 91
- In Stock ：
- 91
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Brand :
- Amphenol SINE Systems
- Contact Gender :
- Pin (Male)
- Operating Temperature :
- -55°C ~ 125°C
- Accessory Type :
- -
- Ingress Protection :
- IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Housing Color :
- Black
- IP Rating :
- IP69X
- Shell Size, MIL :
- -
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Shielding :
- Unshielded
- Material Flammability Rating :
- -
- Voltage Rating :
- 250 V
- Contact Shape :
- Circular
- Mating Cycles :
- 100 Cycle
- Shell Size - Insert :
- 24-91
- Housing Gender :
- Male
- Product Category :
- Standard Circular Connector
- Series :
- DuraMate? AHDBM
- Color :
- Black
- Package :
- Box
- Contact Type :
- Crimp
- Product Status :
- Active
- Shell Material :
- Aluminum Alloy
- Number of Positions :
- 9
- Subcategory :
- Circular Connectors
- Fastening Type :
- Bayonet Lock
- Shell Size :
- 24
- Type :
- For Male Pins
- Insert Material :
- Thermoplastic
- Tradename :
- DuraMate
- Connector Type :
- Receptacle Housing
- Housing Material :
- Thermoplastic (TP)
- Product :
- Receptacles
- Primary Material :
- Metal
- Mounting Style :
- CABLE
- Mounting Feature :
- Bulkhead - Front Side Nut
- Mounting Type :
- Panel Mount
- Product Type :
- Standard Circular Connector
- Note :
- Contacts Not Included; Jam Nut Not Included
- Features :
- Backshell, Cable Clamp
- Contact Size :
- 8 (2), 12 (2), 16 (5)
- Manufacturer :
- Amphenol
- Shell Finish :
- Anodized
- RoHS :
- Details
- Orientation :
- Keyed
- Datasheets
- AHDBM04-24-91PN-059
AHDBM04-24-91PN-059 Documents
Receptacle Housing Aluminum Alloy Panel Mount 9 Positions Anodized Keyed Bayonet Lock
AHDBM04-24-91PN-059 Overview
Packaging for this item is Receptacle Housing.There is a mounting type of Panel Mount for this device.This product is part of the DuraMate? AHDBM Series.In this case, the device operates at -55°C ~ 125°C Operating Temperature.
AHDBM04-24-91PN-059 Features
DuraMate? AHDBM series
AHDBM04-24-91PN-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDBM04-24-91PN-059 Circular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
