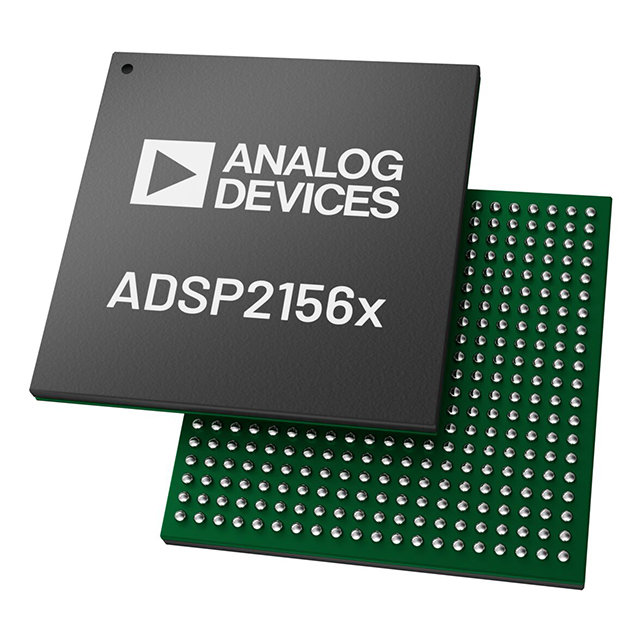

ADSP-21567BBCZ8

Manufacturer :

Analog Devices, Inc.

Product Category :

DSP (Digital Signal Processors)

Package / Case :

CSPBGA-400

Voltage - I/O :

3.30V

Voltage - Core :

1.00V

Mounting :

Surface Mount

Number of Timers/Counters :

10 Timer

Product :

DSPs

Operating Supply Voltage (Typ) :

1/1.8/3.3(V)

Package Type :

CSB-BGA

Pin Count :

400

Product Type :

DSP - Digital Signal Processors and Controllers

Number of Cores :

1 Core

Operating Supply Voltage (Min) :

0.95/1.71/3.13(V)

Operating Supply Voltage :

1 V

Maximum Operating Temperature :

+ 85 C

Operating Temperature Classification :

INDUSTRIALC

Interface Type :

I2C, SPI, UART

Program Memory Size :

512 kb

Clock Freq :

800(MHz)

Mounting Style :

SMD/SMT

Brand :

Analog Devices

Interface :

DDR3, DDR3L, I²C, Link Port, QSPI, SPDIF, SPI, SPORT, UART/USART

Clock Rate :

800MHz

Data Bus Width :

32 bit, 40 bit, 64 bit

Device Core Size :

64(b)

Product Category :

Digital Signal Processors and Controllers - DSP, DSC

Package :

Tray

Architecture :

RISC

Operating Temp Range :

-40C to 85C

Number of I/Os :

40 I/O

Mounting Type :

Surface Mount

Operating Temperature (Min) :

-40C

Supplier Device Package :

400-CSPBGA (17x17)

Packaging :

Tray

Programmable :

No

Type :

Fixed/Floating Point

Product Status :

Active

Operating Temperature (Max) :

85C

Non-Volatile Memory :

OTP (896B)

Minimum Operating Temperature :

- 40 C

Operating Supply Voltage (Max) :

1.05/1.89/3.47(V)

Device Input Clock Speed :

800(MHz)

Subcategory :

Embedded Processors and Controllers

Series :

SHARC®

Operating Temperature :

-40°C ~ 85°C (TA)

Rad Hardened :

No

Manufacturer :

Analog Devices Inc.

RoHS :

Details
