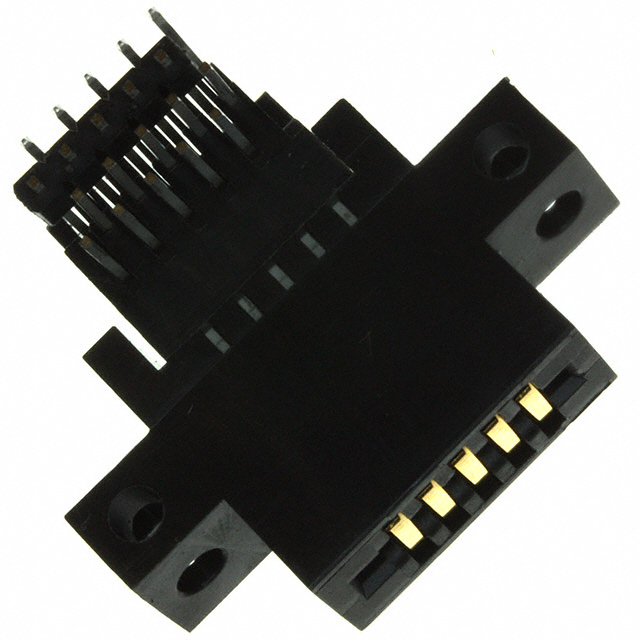

ACB10DKBS
Or copy the link below:
- Mfr.Part #
- ACB10DKBS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 20POS 0.100
- Stock
- 43,991
- In Stock ：
- 43,991
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Termination :
- Solder
- Body Length or Diameter :
- 1.385 inch
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Finish :
- Gold
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Number Of PCB Rows :
- 4
- Card Thickness :
- 0.062 1.57mm
- Connector Type :
- CARD EDGE CONNECTOR
- Body Depth :
- 1.195 inch
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Packaging :
- Tray
- Total Number of Contacts :
- 20
- Number of Positions :
- 20
- Published :
- 2005
- Card Type :
- Non Specified - Dual Edge, Bi-Level
- Feature :
- Bi-Level - High Density
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -65°C~150°C
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- Reference Standard :
- UL
- Number of Positions/Bay/Row :
- 10
- Rated Current (Signal) :
- 3A
- Lead Free :
- Lead Free
- Read Out :
- Dual
- Plating Thickness :
- 30μin
- Length - Termination :
- 0.185 inch
- Insertion Force-Max :
- 1.668 N
- Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Gender :
- FEMALE
- Mount :
- Through Hole
- Contact Material :
- BERYLLIUM COPPER
- Pbfree Code :
- yes
- Contact Type :
- Cantilever
- Body Breadth :
- 0.375 inch
- Number of Conductors :
- ONE
- PCB Contact Pattern :
- STAGGERED
- Pitch :
- 0.100 2.54mm
- Datasheets
- ACB10DKBS
ACB10DKBS Documents
Female Black 0.100 2.54mm Beryllium Copper 2 Rows Tray Solder Gold 20 Positions Polyphenylene Sulfide (PPS)
ACB10DKBS Overview
As per Tray's specifications, the material was packaged.Mounting type Through Hole, Right Angle is recommended.Using the connector socket CARD EDGE CONNECTOR is the device's method of connection.The device has Bi-Level - High Density features.
ACB10DKBS Features
ACB10DKBS Applications
There are a lot of Sullins Connector Solutions
ACB10DKBS Edgeboard Connectors applications.
- Audio/Video devices
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
