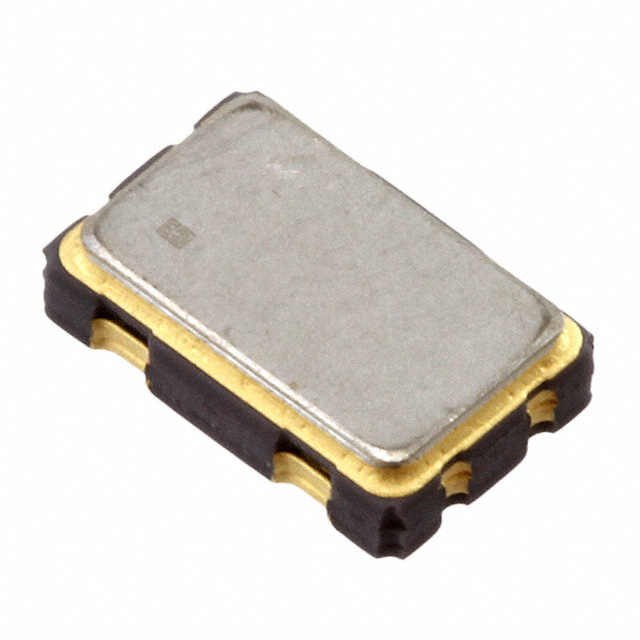

AC-4.000MAE-T

Manufacturer :

TXC Corporation

Product Category :

Oscillators

RoHS Status :

RoHS Compliant

Max Supply Current :

20mA

Frequency Stability :

±50ppm

Min Operating Temperature :

-40°C

Length :

5.0038mm

Mounting Type :

Surface Mount

Case Code (Metric) :

5033

Number of Pins :

4

Output :

CMOS

Case Code (Imperial) :

2013

Frequency :

4MHz

Load Capacitance :

30pF

Packaging :

Cut Tape (CT)

Max Supply Voltage :

3.3V

Height :

1.397mm

Package / Case :

4-SMD, No Lead

Base Resonator :

Crystal

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

AC

Current - Supply (Max) :

20mA

Width :

3.2004mm

Factory Lead Time :

19 Weeks

Termination :

SMD/SMT

Function :

Enable/Disable

Type :

XO (Standard)

Voltage - Supply :

5V

Min Supply Voltage :

1.8V

Size / Dimension :

0.197Lx0.126W 5.00mmx3.20mm

Depth :

3.2mm

Mount :

Surface Mount

Ratings :

AEC-Q100

Height Seated (Max) :

0.055 1.40mm

Max Operating Temperature :

85°C

Operating Temperature :

-40°C~85°C

REACH SVHC :

No SVHC
