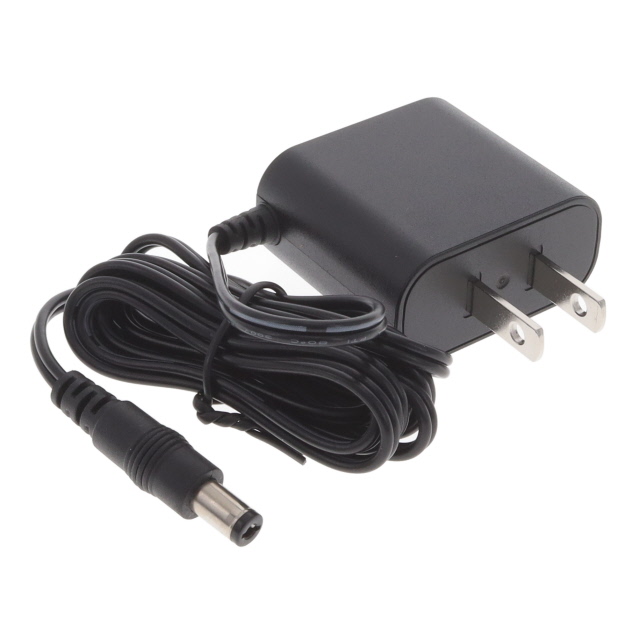

AA03A-120A-R

Manufacturer :

PHIHONG USA

Product Category :

Package :

Bulk

Region :

North America

Product Status :

Active

Efficiency :

Level VI

Product Category :

Wall Mount AC Adapters

Weight :

-

Series :

AA03A (2.75W)

Form :

Wall Mount (Class II)

Voltage - Output :

12V

Input Voltage :

90 VAC to 264 VAC, 100 VAC to 240 VAC

Current - Output (Max) :

229mA

Manufacturer :

Phihong

Mounting Style :

Wall Mount

Applications :

ITE (Commercial)

Brand :

Phihong

Output Connector :

Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm

Standard Number :

62368-1

Maximum Operating Temperature :

+ 40 C

Cord Length :

59" (1.50m)

RoHS :

Details

Output Power :

2.75 W

Load Regulation :

Regulated

Product :

Fixed Plug

Subcategory :

AC-DC Power Supply

Input Type :

Fixed Blade

Power (Watts) :

2.8 W

Size / Dimension :

1.69" L x 1.55" W x 0.83" H (43.0mm x 39.4mm x 21.0mm)

Polarization :

Positive Center

Base Product Number :

AA03A

Region Utilized :

North America

Number of Outputs :

1 Output

Operating Temperature :

0°C ~ 40°C

Approval Agency :

cULus

Connector Type :

Barrel Connector

Input Connector :

NEMA 1-15P

Voltage - Input :

90 ~ 264 VAC

Approvals :

cUL/UL 62368-1

Product Type :

Wall Mount AC Adapters

Minimum Operating Temperature :

0 C

No Load Power Consumption :

75mW (Max)
