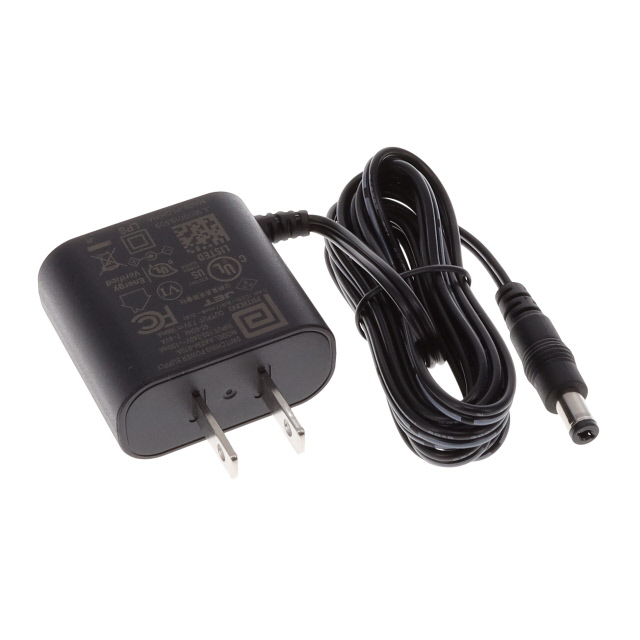

AA03A-075A-R

Manufacturer :

PHIHONG USA

Product Category :

Connector Type :

Barrel Connector

Base Product Number :

AA03A

Input Connector :

NEMA 1-15P

Region Utilized :

North America

Series :

AA03A (2.75W)

Input Type :

Fixed Blade

No Load Power Consumption :

75mW (Max)

Input Voltage :

90 VAC to 264 VAC, 100 VAC to 240 VAC

Manufacturer :

Phihong

Operating Temperature :

0°C ~ 40°C

Product Category :

Wall Mount AC Adapters

Power (Watts) :

2.8 W

Applications :

ITE (Commercial)

Brand :

Phihong

Approval Agency :

cULus

Mounting Style :

Wall Mount

Approvals :

cUL/UL 62368-1

Maximum Operating Temperature :

+ 40 C

Voltage - Output :

7.5V

Minimum Operating Temperature :

0 C

Standard Number :

62368-1

Polarization :

Positive Center

Load Regulation :

Regulated

Product :

Fixed Plug

Product Status :

Active

Product Type :

Wall Mount AC Adapters

Subcategory :

AC-DC Power Supply

Cord Length :

59" (1.50m)

RoHS :

Details

Voltage - Input :

90 ~ 264 VAC

Efficiency :

Level VI

Form :

Wall Mount (Class II)

Output Connector :

Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm

Current - Output (Max) :

366mA

Weight :

-

Size / Dimension :

1.69" L x 1.55" W x 0.83" H (43.0mm x 39.4mm x 21.0mm)

Output Power :

2.75 W

Package :

Bulk

Number of Outputs :

1 Output

Region :

North America
